Brand Name: Sinotruk Howo
Refrigeration Box Capacity: 40 CBM
Refrigeration Range: -5°C to -18°C
Payload: 9,925kg
Specification: 4X2
Place of origin: in china

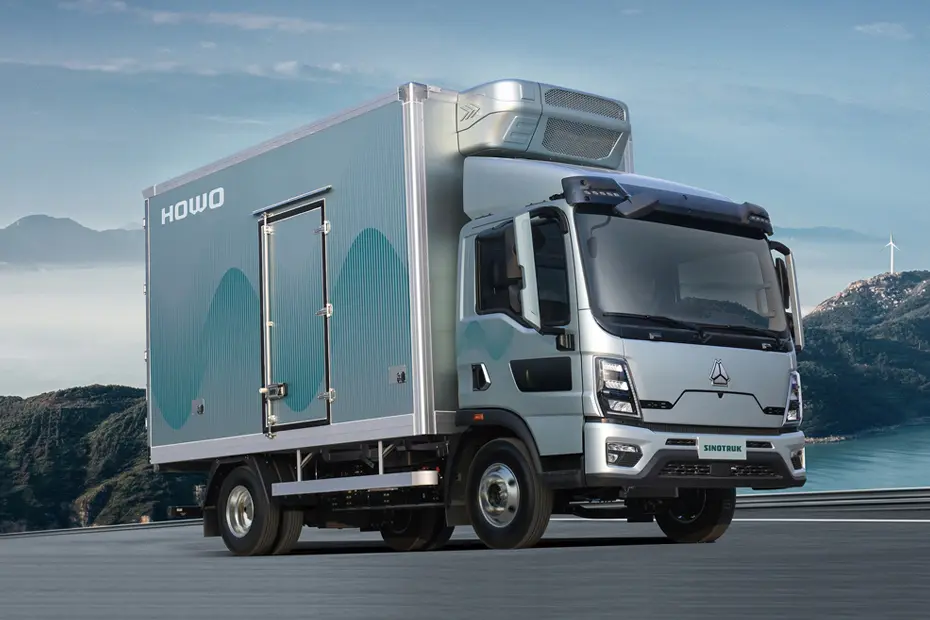

Howo Refrigerated Truck: Reliable Cold Chain Solution for Modern Logistics
The Howo Refrigerated Truck is a cutting-edge transportation vehicle designed to meet the precise demands of temperature-sensitive goods logistics. Equipped with advanced refrigeration technology and durable insulation, this refrigerated truck ensures consistent temperature control for perishable cargo during transit. The Howo Refrigerated Truck series offers versatile configurations to support diverse cold chain applications, from urban food distribution to long-haul pharmaceutical transport.
Howo Refrigerated Truck Key Specifications
Payload Capacity: 5–30 tons (varies by model).
Chassis Options: 4×2, 6×4, and 8×4 drive types.
Refrigeration Unit: Euro III-V compliant, with temperature range -25°C to +20°C.
Insulation Material: High-density polyurethane foam for thermal efficiency.
Engine Power: 266–420hp diesel engines for optimal performance.
Cargo Volume: 4–16m³ insulated compartments.
Howo Refrigerated Truck Parameters
| ITEM | DESCRIPTION |
|---|---|
| Vehicle Model | Sinotruk Howo Refrigerated Truck |
| Chassis Brand | Sinotruk HOWO |
| Body Length | 6,830mm |
| Engine | German MAN 255HP 6-cylinder 6.9L (MC07.25-60) |
| Transmission | HOWO 8-speed High Torque Transmission |
| Wheelbase | 5,100mm |
| Tires | 275/80R22.5 Vacuum Tires |
| Emission Standard | EURO VI |
| Standard Features | Sinotruk MAN Engine (MC07.25-60), 275/80R22.5 Vacuum Tires, Front Aluminum Alloy Wheels + Rear Lightweight Wheels, Airbag Seats, Automatic Air Conditioning, Electric Flip Cab, ABS, Sinotruk Intelligent Communication B Version, Multimedia Central Control Large Display Screen, 4-way Cameras, Dashcam, Power Windows and Doors, Remote Key, Central Locking, LED Daytime Running Lights, Electric Heated Mirrors, Multifunction Steering Wheel. |
| Exterior Dimensions(LxWxH) | 9,230×2,600×3,980 (mm) |
| Body Dimensions(LxWxH) | 6,830×2,420×2,520 (mm) |
| Gross Weight | 18,000kg |
| Curb Weight | 7,880kg |
| Payload | 9,925kg |
| Refrigeration Range | -5°C to -15°C |
| Refrigeration Unit | Kaixue 990 |
| Optional Units | Kelly, Huatai, Hanxue, Thermo King, Carrier, Bingsen, Xiangxue, Hanya, etc. |
| Body Configuration | The body is manufactured using a hydraulic suction integrated molding production line, with insulation performance reaching national A-level standards. The interior and exterior panels use high-quality 2.2mm fiberglass (non-absorbent, good insulation, strong hardness, anti-oxidation). The middle insulation layer is an 80mm thick PUR polyurethane panel, with aluminum alloy edging around the body, stainless steel corners, stainless steel door locks, stainless steel door frames and hinges, and energy-saving LED lighting inside the body. |
| Ventilation System | T-shaped ventilation grooves, bottom ventilation grooves, and ventilation partitions around the body. |
| Optional Features | Guide rail meat hook, T-shaped ventilation groove, right side opening door, temperature real-time monitoring with printing device. For seafood bodies, interior materials must be optionally made of stainless steel. Optional 12V-24V external power supply. When the vehicle is stopped, the body is refrigerated using an external power supply. |
