Brand Name: Sinotruk Howo TX
Full load mass (kg): 18000
Engine Model: WP4.6NQ220E61
Fuel tank: 200L
Specification: 4X2
Place of origin: in china

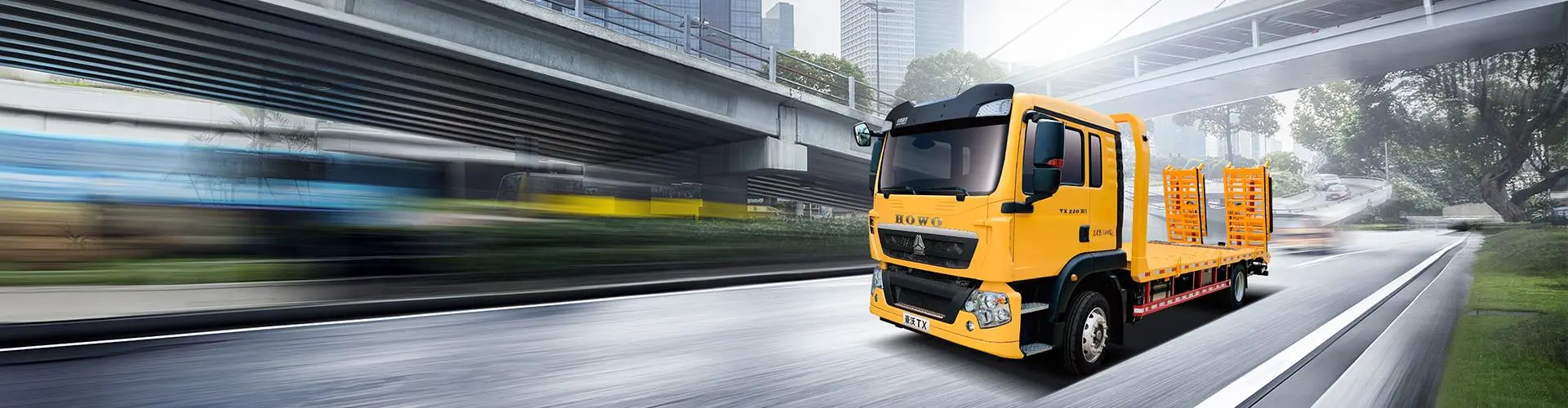

Howo TX 4×2 Flatbed Truck
Sinotruk Howo flatbed trucks, as leaders in chassis quality, are equipped with high-end WP series engines, Howo HW series transmissions, and MAN technology engineering axles. This golden powertrain features precise integrated matching and development, resulting in higher transmission efficiency, ample power, and low fuel consumption. Featuring Sinotruk’s unique new MAN technology chassis, with equal strength design and verified through finite element analysis, it eliminates stress concentration and provides superior load-bearing capacity. The king of load-bearing capacity, conquering the battlefield.
Howo TX 4×2 Flatbed Truck Parameter
| Vehicle Series Categories | Special vehicles |
| Announcement Name | Howo TX 4×2 Flatbed Truck |
| Standard towing weight (kg) | slightly |
| Full load mass (kg) | 18000 |
| Outer contour dimensions | Length: 9000 Width: 2550 Height: 3200 |
| wheelbase | 5000 |
| Maximum speed (km/h) | 89/101 (km/h) |
| Maximum gradeability (%) | >35 |
| Engine Model | WP4.6NQ220E61 |
| Maximum torque (Nm) / speed (r/min) | 800/1200-1800 |
| gearbox | HW95508STC gearbox + HW45ZC flange power take-off unit |
| Rear axle model | MCJ09BG Self-Adjusting Arm Single Rear Axle (Drum) |
| Fuel tank (L) | 200L fuel tank |
| Suspension (front springs, rear springs) | Reinforced multi-leaf springs (7/7+6) |
| Engine displacement | 4.58L |
| Emission levels | National VI |
| Sales Company | China National Heavy Duty Truck Group Jinan Truck Sales Department |
| Announcement Model | ZZ5187TPBK501GF1 |
| Drive form | 4X2 |
| curb weight | 8270kg |
| Minimum ground clearance (mm) | 238 |
| Economic speed (km/h) | 70-90 |
| Minimum turning diameter (m) | ≤24 |
| Engine net power (kW) / speed (r/min) | 162/2300 |
| Clutch (mm) | φ430 |
| Rear axle speed ratio | 4.63 |
| Frame cross-section (mm) | 280 |
| tire | 295/60R22.5 |
| horsepower | 220 |
| fuel | fuel |
Why Choose the Howo TX 4×2 Flatbed Truck?
This 4×2 flatbed truck is built to maximize productivity while minimizing operating costs. Its intelligent design, reinforced chassis, and operator-focused features make it an ideal choice for businesses requiring efficient and adaptable cargo solutions.
*Experience the versatility of the Howo TX 4×2 Flatbed Truck – where reliability meets performance for seamless transport operations.
