Brand Name: Sinotruk Howo Tx
Model: ZZ1257N384GB1R
Maximum Speed: 82km/h
Mixing dynamic volume: 9m³
Specification: 6X4
Place of origin: in china

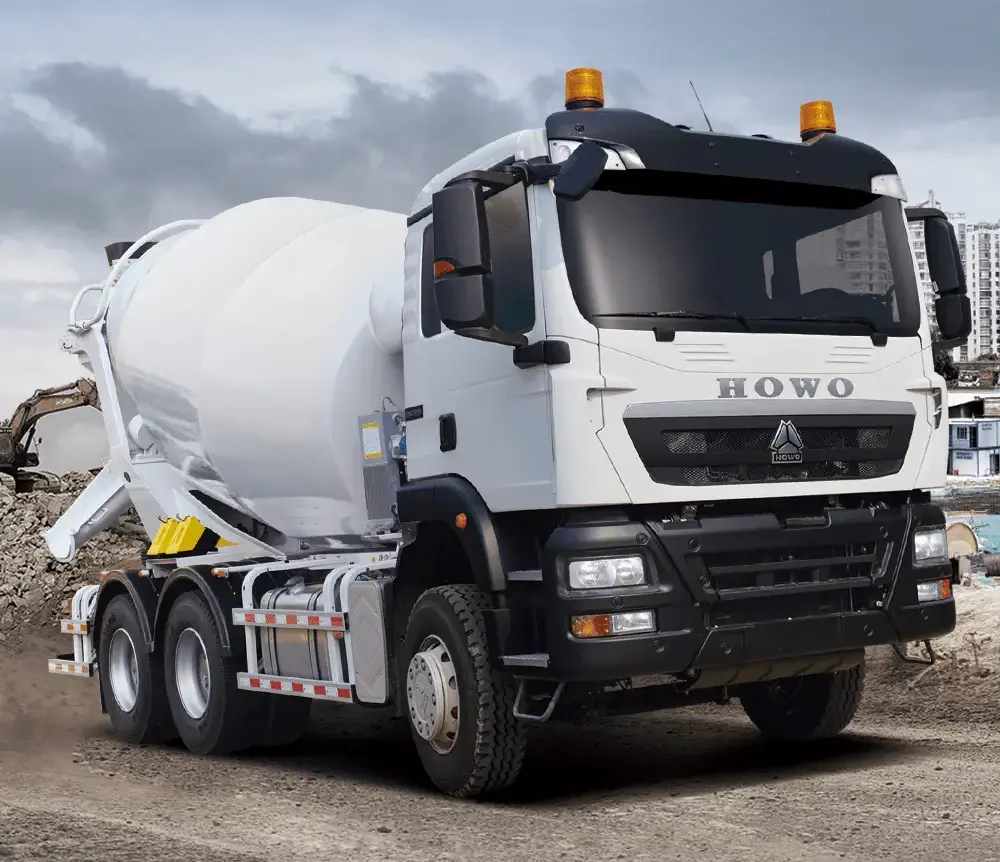

Howo TX 6×4 Mixer Truck: Professional Solution for Concrete Transport
The Howo TX 6×4 Mixer Truck is a heavy-duty vehicle engineered for reliable concrete transportation in construction projects. Combining a 6×4 drivetrain with advanced mixing technology, this mixer truck ensures consistent performance and durability across various job sites.
This 6×4 mixer truck is engineered to maximize productivity in concrete transport while minimizing maintenance requirements.
Experience the reliability of the Howo TX 6×4 Mixer Truck – where advanced engineering meets practical performance for construction efficiency.
Howo TX 6×4 Mixer Truck Key Specifications
Engine Performance: Powered by a 371-420hp diesel engine， delivering robust torque and smooth operation even under full loads.
Mixing Capacity: Features a durable rotating drum with 8-12m³ volume capacity, designed for efficient concrete mixing and discharge.
Drivetrain Configuration: The 6×4 axle design enhances traction and stability on challenging terrains.
Howo TX 6×4 Mixer Truck Parameters
| SINOTRUK Howo TX 6×4 Mixer Truck | |
| Cabin | HW76 cab, with one sleeper and two seats, with Air Conditioner, 2-arm windscreen wiper system with three speeds, damped adjustable driver’s seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, with transverse stabilizer,with 4-point support fully floating suspension + shock absorber. |
| Engine | Diesel 4-stroke direct injection diesel engine Engine model:WD615.47, 371HP 6-cylinder in-line with water cooling, turbo-charging and intercooling |
| Transmission | HW19710, 10F & 2R Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
| Steering | ZF power steering, model ZF8118, hydraulic steering with power assistance |
| Front Axle | VGD95, 1×9500 KGS Steering with double T-cross section beam |
| Rear Axle | MCX16ZG, 2×16000 KGS Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles. |
| Chassis | Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members Front suspension:9semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer |
| Brake | Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake |
| Electrics | Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
| Tires | 12.00R20, Radial (steel wire) Tires. 10+1 Pics. |
| Mixer Body | Tank Body: it can as your requirements |
| Fuel Tank | 400L |
| Overall Dimension | 9000*2550*3950 mm |
Howo TX 6×4 Mixer Truck Operational Advantages
Durable Construction: Reinforced chassis and heavy-duty components withstand rigorous daily use.Fuel Efficiency: Optimized powertrain reduces operating costs while maintaining performance.
Application Scenarios:
Urban high-rise building construction;
Road and bridge infrastructure projects;
Precast concrete element production;
Ready-mix concrete plant distribution
