Brand Name: Sinotruk Howo Tx
Engine: 266/290/336/371hp
Load Capacity: 3t
Price: USD9,000-15,800
Specification: 8X4
Place of origin: in china

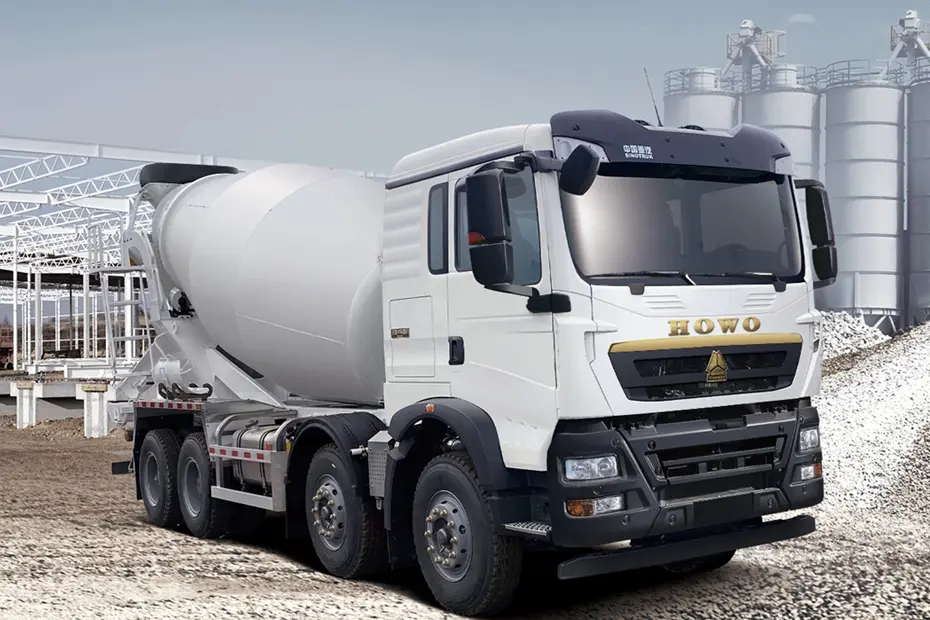

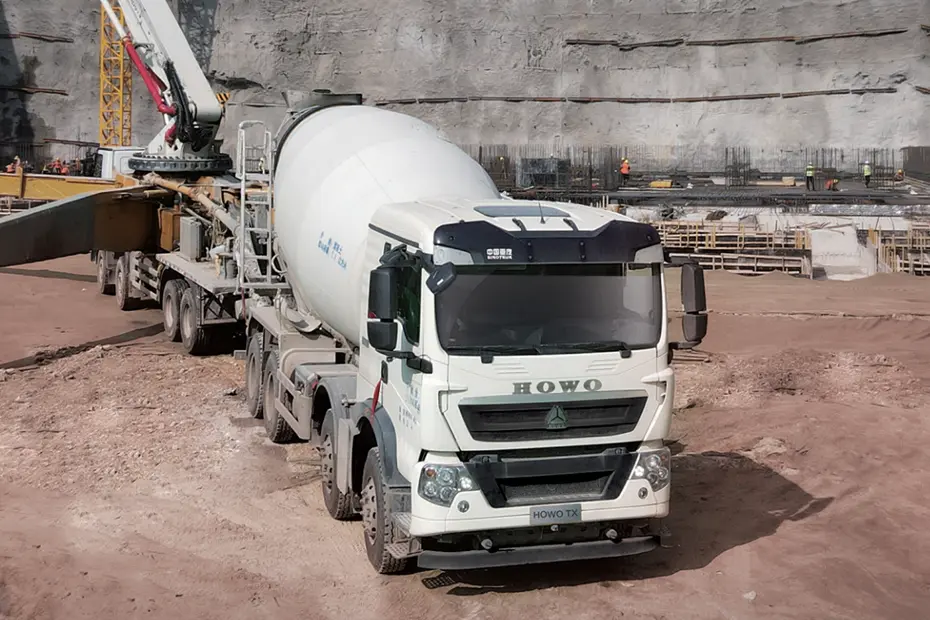

Howo TX 8×4 Mixer Truck
The Howo TX 8×4 Mixer Truck is a purpose-built solution for efficient concrete transportation in construction and infrastructure projects. Combining the 8×4 drivetrain with a rotating drum design, this mixer truck ensures consistent mixing and timely delivery of concrete to job sites, which directly supports the continuity of modern construction workflows.
Howo TX 8×4 Mixer Truck Technical Specifications
The Howo TX 8×4 Mixer Truck thus stands as a durable and adaptable solution for concrete logistics, integrating power with operational precision.
Powertrain: Diesel engine with 336-400hp output, ensuring reliable torque for steep inclines and long-distance hauls.Drive Configuration: 8×4 wheel arrangement with reinforced axles, providing superior traction on unstable terrains.
Howo TX 8×4 Mixer Truck Excellent performanc
Howo TX 8×4 Mixer Truck are heavily optimised in terms of power, comfort and maintenance convenience. For example, Howo TX 8×4 Mixer Truck adopts all-metal three-section bumper and split headlight, which is convenient for maintenance and replacement; Howo TX 8×4 Mixer Truck is equipped with Weichai WP8 National 6 engine, which provides 350 hp and full power, matched with HOWO HW series transmission and Mann-Tech engineering axle, which constitutes a golden power chain.
Howo TX 8×4 Mixer Truck Details
Sinotruk Mixer Model: QDZ5310GJBZHTX35Z1SBEV
Chassis platform: Sinotruk Mixer TX
Driving Form：Sinotruk Mixer TX 8×4
Cabin: TX-K
Overall dimensions: 10710×2530×3995mm
Wheelbase: 1800+3450+1350mm
Vehicle mass: 15700kg
Full loaded mass of the vehicle: 31000kg
Motor Model: TZ410XSWDM2004
Rated/peak power: 240/360kw
Rated/peak torque: 1000/2000 Nm
Battery: Battery, rated voltage 618 volts, power 282 kWh
Controller: Huichuan 4-in-1 VCU
Transmission: HW19705
Front axle: VGD75
Rear axle: MCX16(5.45)
Suspension: Front and rear reinforced multi-leaf spring
Tyre: 12R22.5
Maximum speed: 80km/h
Range: 140km
Churning capacity: 6.95 cubic metres
Feeding speed: ≥3 cubic metres/minute
Discharge speed: ≥2 cubic metres/minute
Discharge residual rate: ≤ 0.5%
