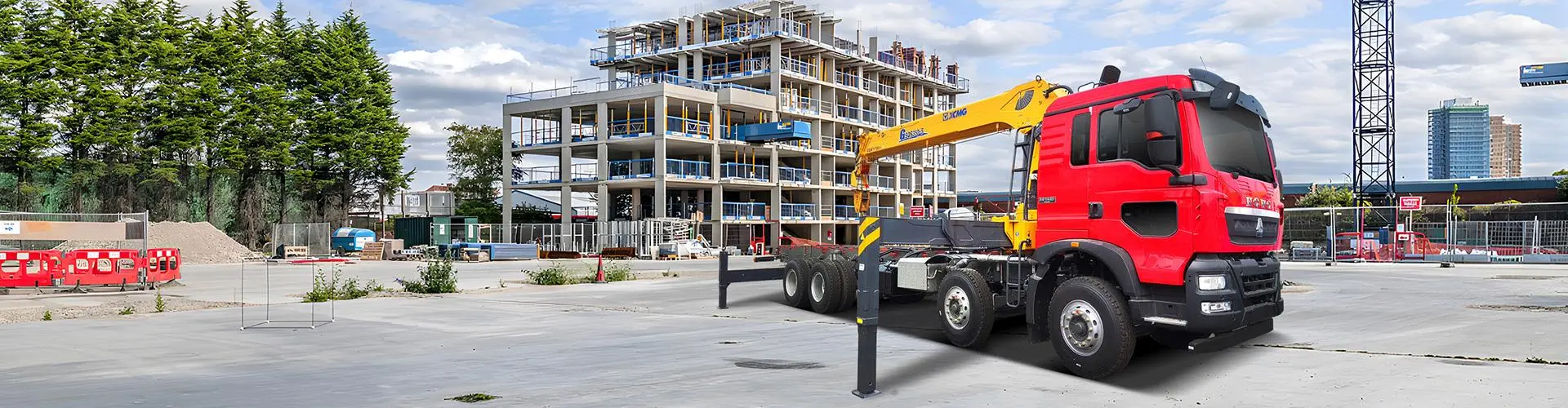

Howo TX 8×4 Mounted Crane Truck-2
Trucks Special Vehicle Other Truck Howo TX 8×4 Mounted Crane Truck

Howo TX 8×4 Mounted Crane Truck

Models

Brand Name: Sinotruk Howo Tx

Full load mass: 3100kg

Maximum speed :89 (km/h)

Fuel tank: 400L

Specification: 6X4

Place of origin: in china

Howo TX 8×4 Mounted Crane Truck
Product Description

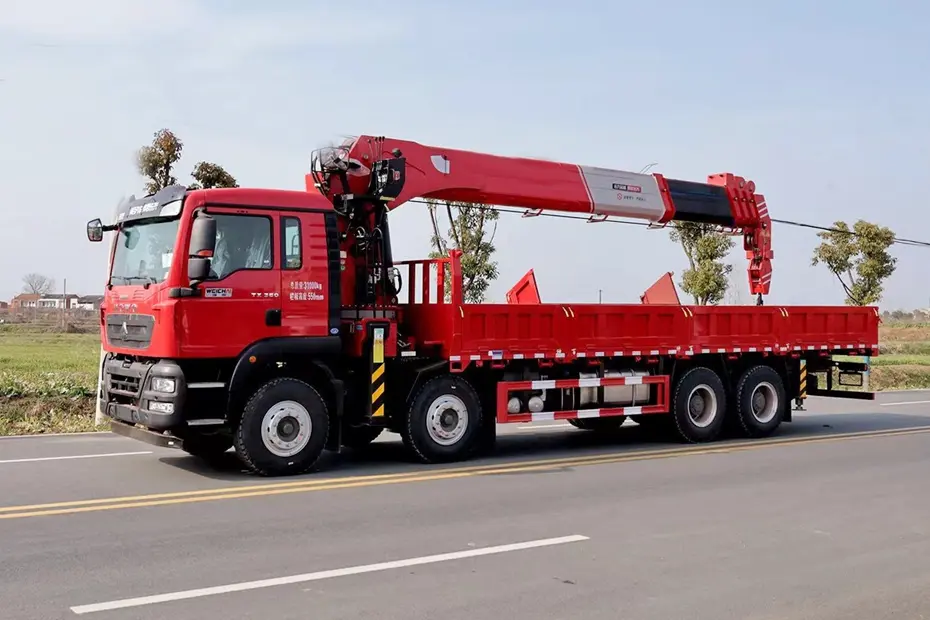

Howo TX 8×4 Mounted Crane Truck-1
Howo TX 8×4 Mounted Crane Truck: Versatile Power for Heavy Lifting

The ‌Howo TX 8×4 Mounted Crane Truck‌ is a specialized heavy-duty vehicle engineered for construction, logistics, and material handling operations.Combining the proven ‌Howo TX‌ platform with an integrated crane system, this ‌mounted crane truck‌ delivers exceptional lifting capacity, mobility, and operational efficiency.

Sinotruk Howo Truck-6
Howo TX 8×4 Mounted Crane Truck ‌Key Features

8×4 Drivetrain‌: The four-axle configuration ensures superior traction and stability on challenging job sites.

Crane Performance‌: The boom truck crane can lift up to 15 tons with a maximum lifting height of 20m.

Durable Chassis‌: Reinforced frame design to withstand rigorous lifting tasks.

Operator-Friendly Cabin‌: Ergonomically designed with air-suspended seats and intuitive controls.

Howo TX 8×4 Mounted Crane Truck Parameter
Vehicle Series Categories Special vehicles
Announcement Name Howo TX 8×4 Mounted Crane Truck
Standard towing weight (kg) slightly
Full load mass (kg) 3100
Outer contour dimensions Length: 11930 mm, Width: 2496 mm, Height: 3159 mm
wheelbase 2100+4300+1350
Maximum speed (km/h) 89 (km/h)
Maximum gradeability (%) >35
Engine Model WP8.350E61
Maximum torque (Nm) / speed (r/min) 1400/1200-1600
gearbox HW13709XSTC2 gearbox + HW70 flange PTO
Rear axle model MCJ12BG Self-Adjusting Arm Dual Rear Axle (Drum)
Fuel tank (L) 400L
Suspension (front springs, rear springs) Reinforced multi-leaf springs (11/11/12)
Engine displacement 7.8L
Emission levels National VI
Sales Company China National Heavy Duty Truck Group Jinan Truck Sales Department
Announcement Model ZZ1317N436GF1 (Chassis)
Drive form 8X4
curb weight 10800kg
Minimum ground clearance (mm) 251
Economic speed (km/h) 70-90
Minimum turning diameter (m) twenty four
Engine net power (kW) / speed (r/min) 252/2100
Clutch (mm) φ430
Rear axle speed ratio 4.63
Frame cross-section (mm) 300
tire 12.00R20
horsepower 350
fuel fuel
Howo TX 8×4 Mounted Crane Truck
Why Choose the Howo TX 8×4 Mounted Crane Truck?

This ‌mounted crane truck‌ is built to maximize productivity in demanding lifting operations14。 With its intelligent drivetrain and robust crane system, it offers a reliable solution for businesses requiring efficient material handling.

*Experience the precision of the ‌Howo TX 8×4 Mounted Crane Truck‌ – where lifting power meets mobility in one integrated platform.
