Brand Name: Sinotruk Howo
Truck ModelL: ZZ5707S3840AJ
Loading Weight(kg): 50000
Dimension(L*W*H): 8600X3300X4340mm
Specification: 6X4
Place of origin: in china

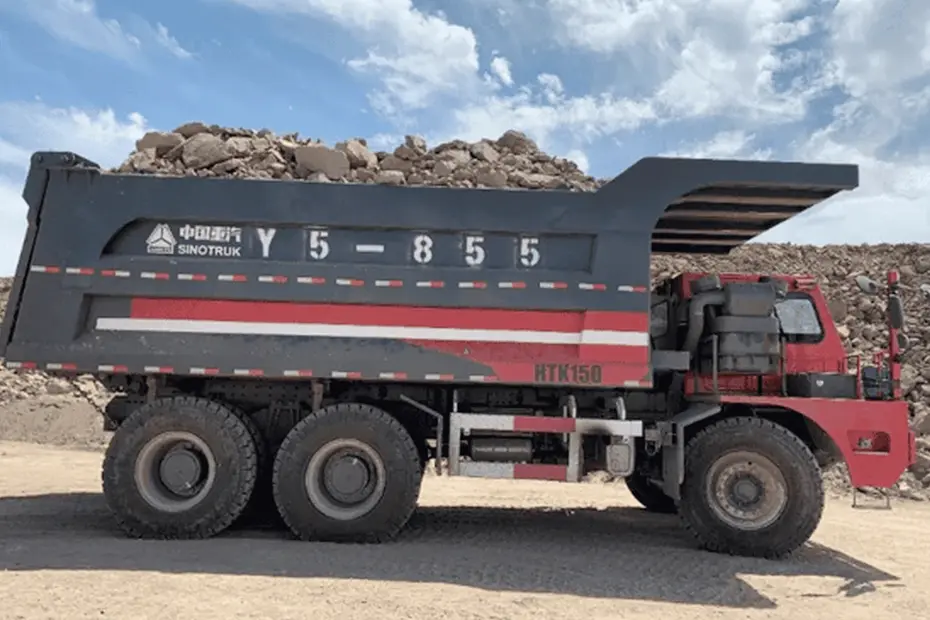

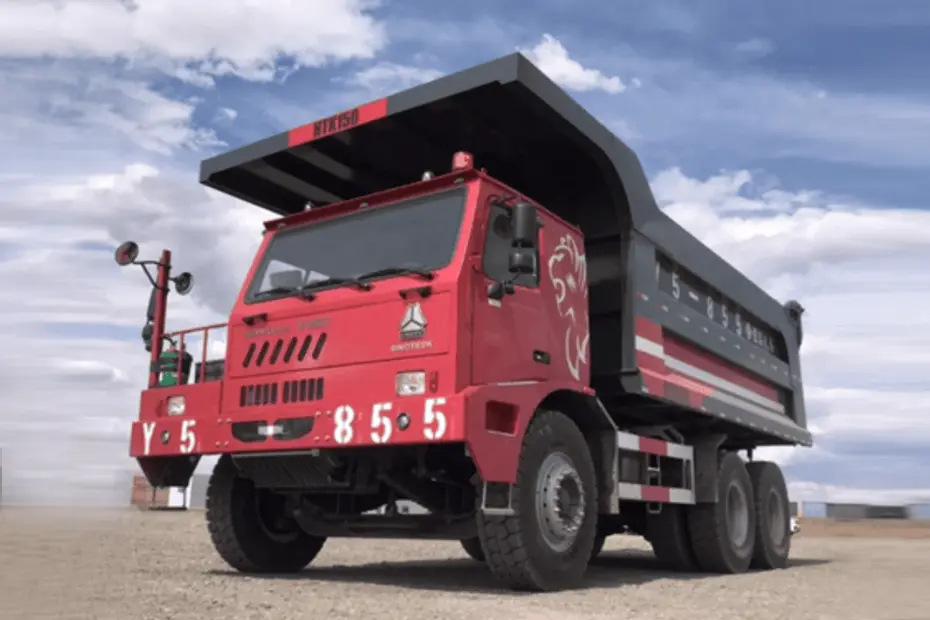

Sinotruk Howo 6X4 Mining Dump Truck
The Sinotruk Howo 6X4 Mining Dump Truck is engineered to meet the rigorous demands of large-scale mining operations.
Whether transporting coal, gold, or nickel ores, or handling various minerals like crushed stone, metallic ores, and gravel, the HOWO mine vehicle can easily cope with them all. Boasting a robust payload capacity of 30T-135T, as well as excellent safety, high attendance rate and high reliability, HOWO mine vehicle ensures your ore transportation efficient and worry-free.
Sinotruk Howo 6X4 Mining Dump Truck Powerful Performance
Equipped with high-power engine, providing strong power output, adapting to the operation needs under complex working conditions. Optimized engine design improves fuel economy and reduces operating costs.
Durable chassis: Reinforced vehicle frame structure enhances the rigidity and bearing capacity of the whole vehicle.
Safe Driving Cabin: Pioneered in China, the single-sided, skeletal frame with skin structure maximizes the field of view.
Sinotruk Howo 6X4 Mining Dump Truck Parameter
|
Truck Name |
Sinotruk 6X4 Mining Dump Truck |
|
Truck Model |
ZZ5707S3840AJ |
|
Truck Brand |
SINOTRUK–HOWO |
|
Driving Style |
Left hand driving |
|
Dimension(L*W*H)(mm) |
8600X3300X4340 |
|
Cargo body size (L*W*H, mm) |
5800*3100*1800, 32.36m3,U-Type bucket without rear door |
|
Cargo thickness(mm) |
Bottom:14mm, Side:12mm,Rear door: 12mm |
| Cargo material | Manganese plate |
| Wheelbase | 3800+1500 |
| Approaching/Departure Angle(°) | 32/40 |
| Curb weight(kg) | 27300 |
| Loading Weight(kg) | 50000 |
| Engine Model | WD615.47, water-cooled,four strokes,
6 cylinders in line with water cooling,turbocharged and inter cooling, directly injection |
| Fuel type | Diesel |
| Horse Power | 371HP |
| Emission | EUROII |
| Fuel tanker capacity | 500 L |
| Clutch | 430 diaphragm spring clutch Type A, hydraulic air booster |
| Transmission | HW19710 10 forwards and 2 reverse |
| Service brake | Dual circuit compressed air brake |
| Parking brake | spring energy, compressed air operating on rear wheels |
| Auxiliary brake | Engine exhaust brake |
| Steering system | ZF8098 hydraulic steering with power assistance |
| Front axle | VGK20 (After upgrade) |
| Rear axle | MCK45 (After upgrade) |
| Color | White,Red,Green,Yellow,Blue |
| Tyre | 14.00-25 big size mining use special tire
10PCS with one spare tire |
| Cab |
HW7D cab, (with air-condition) |
Sinotruk Howo 6X4 Mining Dump Truck Key Features
Powerful Engine: The 6X4 mining dump truck is equipped with a robust diesel engine delivering 351-450hp, with high-torque variants like the 420hp model tailored for heavy loads.Robust Chassis: Reinforced frame designed for 60-70ton payload capacities in demanding mining environments.Dumping Mechanism: Reliable front-lift system for efficient discharge of overburden and extracted minerals.
