Brand Name: Sinotruk Howo T7H
Model: ZZ5257GJBN404HD1
Stirring dynamic volume: 8m³
Engine: Sinotruck MC11.36-40
Specification: 6X4,8X4
Place of origin: in china

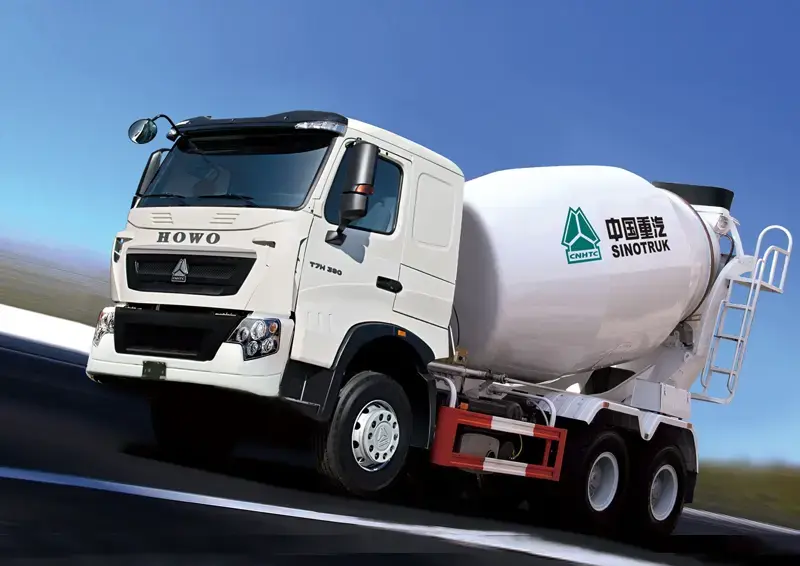

Sinotruk Howo T7H Mixer Truck Long-Haul Transportation Expert
The Sinotruk Howo T7H Mixer Truck is a specialized vehicle engineered for efficient concrete transport in construction projects and infrastructure development。 Combining German MAN technology with Sinotruk’s manufacturing expertise, this mixer truck delivers exceptional performance in transporting and mixing ready-mix concrete.
The HOWO T7H delivers exceptional performance with its fuel efficiency, comfortable cab, spacious storage, increased speed, and higher payload capacity – all seamlessly integrated to meet your every need.
Sinotruk Howo T7H Mixer Truck Key Specifications
Chassis Configuration: Built on the proven HOWO T7H series platform with 6×4 or 8×4 drive options.
Mixer Capacity: Standard configurations ranging from 8 to 12 cubic meters.
Powertrain: Equipped with durable engine and transmission systems, consistent with its industrial purpose.
Engine Power: Available in multiple power ratings, typically between 336-420hp。
Sinotruk Howo T7H Mixer Truck Parameters
| SINOTRUK HOWO T7H MIXER TRUCK | |
| Cabin | HW76 cab, with one sleeper and two seats, with Air Conditioner, 2-arm windscreen wiper system with three speeds, damped adjustable driver’s seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, with transverse stabilizer,with 4-point support fully floating suspension + shock absorber. |
| Engine | Diesel 4-stroke direct injection diesel engine Engine model:WP10.360E22 6-cylinder in-line with water cooling, turbo-charging and intercooling |
| Transmission | HW19710, 10F & 2R Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
| Steering | ZF power steering, model ZF8118, hydraulic steering with power assistance |
| Front Axle | VGD95, 1×9500 KGS Steering with double T-cross section beam |
| Rear Axle | MCX16ZG, 2×16000 KGS Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles. |
| Chassis | Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members Front suspension:9semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer |
| Brake | Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake |
| Electrics | Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
| Tires | 12.00R20, Radial (steel wire) Tires. 10+1 Pics. |
| Mixer Body | Tank Body: it can as your requirements |
| Fuel Tank | 400L |
| Overall Dimension | 9000*2550*3950 mm |
Sinotruk Howo T7H Mixer Truck Applications
Sinotruk Howo TX 6×4 Mixer Truck has been widely used in Algeria, Southeast Asia and other markets due to its high cost performance and durability. The Sinotruk Howo TX 6×4 Mixer Truck is equipped with a wide-view cab and basic safety assistance functions as standard, taking into account both driver comfort and operational safety.Sinotruk’s comprehensive after-sales network and rapid response mechanism provide users with full life-cycle support and minimize the risk of downtime.Large-scale construction projects requiring continuous concrete supply;Infrastructure development including bridges, tunnels, and roads;Commercial building construction for foundations and structural elements.
