Brand name: Sinotruk Howo
Vehicle use: Sinotruk Howo Tipper Truck
Model number: ZZ3257N384GB1R
Engine: WD615.47
Dimension(mm): 8600*2550*3450
Fuel tank: 300L
Drive type: 6x4
Place of origin: in china

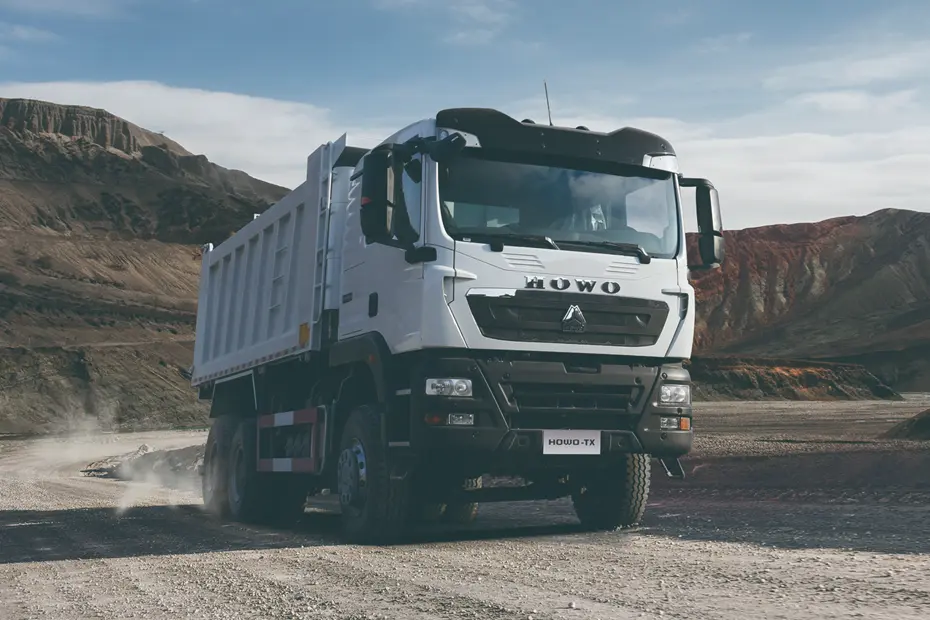

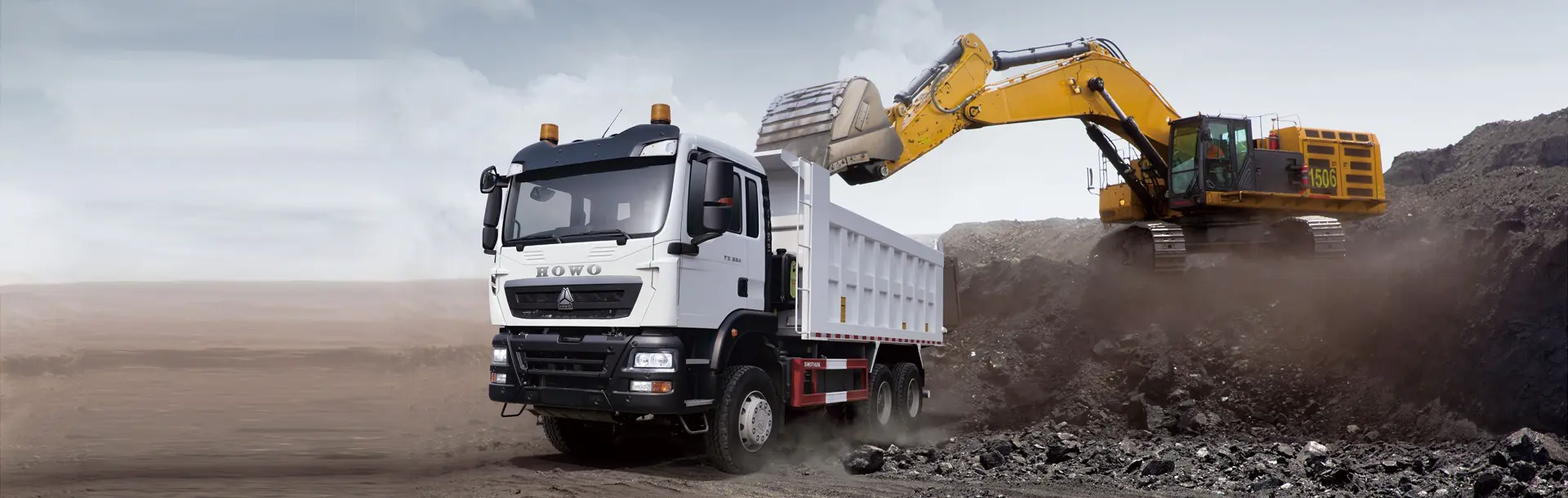

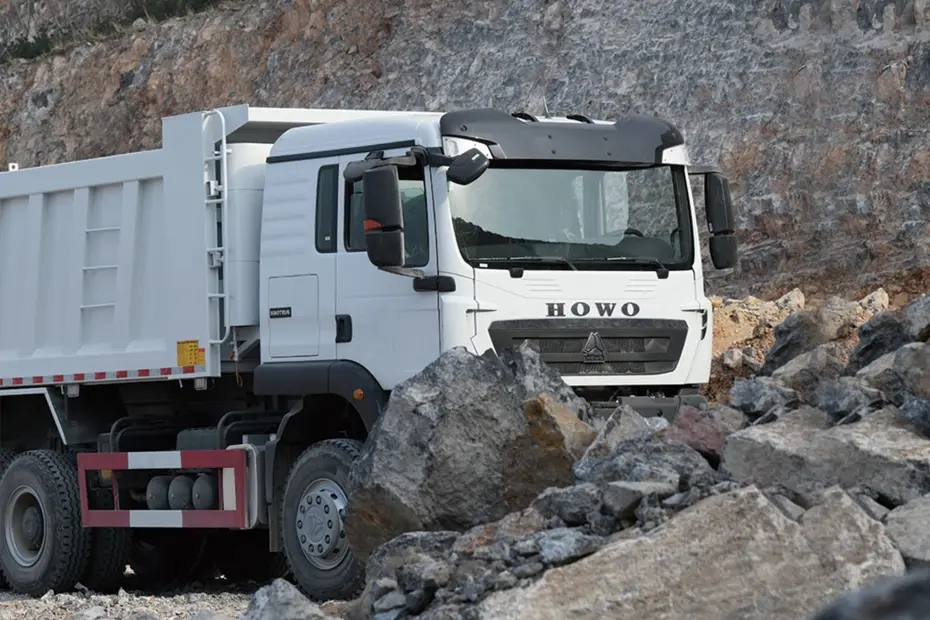

Sinotruk HOWO TX 6×4 Dump Truck: A Reliable Workhorse for Efficient Hauling
The Sinotruk HOWO TX 6×4 Dump Truck is a versatile and robust solution designed for medium to heavy-duty material transport in construction, mining, and infrastructure projects. Engineered with durability and efficiency in mind, this 6×4 Dump Truck delivers exceptional performance while prioritizing operator comfort and safety.
SINOTRUK HOWO TX 6X4 DUMP TRUCK
This 6×4 Dump Truck is built to maximize productivity while minimizing maintenance costs. Its intelligent drivetrain, reinforced body, and operator-focused design make it a trusted partner for businesses prioritizing efficiency and reliability in medium-duty hauling.
Invest in the Sinotruk HOWO TX 6×4 Dump Truck – where power meets precision for a seamless work experience.
Parameters
| SINOTRUK HOWO TX 6X4 DUMP TRUCK | |
| Production Year | 2025, new truck. |
| Cabin | TX-F cab, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver’s seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer,with 4-point support fully floating suspension + shock absorber. |
| High steel bumper, Inter-cooler Protection. | |
| Engine | Diesel 4-stroke direct injection diesel engine |
| Engine model: WD615.47, 371HP | |
| 6-cylinder in-line with water cooling, turbo-charging and intercooling | |
| Displacement:9.726L | |
| Transmission | HW19710, 10F & 2R, with HW50 Direct PTO |
| Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) | |
| Steering | ZF power steering, model ZF8098, hydraulic steering with power assistance |
| Front Axle | VGD95, 1*9500 KGS |
| Steering with double T-cross section beam | |
| Rear Axle | MCP16ZG, 2×16000 KGS |
| Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles. | |
| Ratio:5.92 | |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
| Chassis | Front suspension:11semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer |
| Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer | |
| Brake | Service brake: dual circuit compressed air brake |
| Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels | |
| Auxiliary brake: engine exhaust brake | |
| Electrics | Operating voltage: 24 V, negative grounded |
| Starter: 24 V, 5.4 Kw | |
| Alternator: 3-phase, 28 V, 1500 W | |
| Batteries: 2 x 12 V, 165 Ah | |
| Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light | |
| Fuel Tank | 300L |
| Tire | 12.00R20, Radial (steel wire) Tires . 10+1 Pics |
| Cargo body | 5400x2300x1450mm. 18 Cubic Meters |
| Color | Optional |
| Overall Dimension | 8600*2550*3450 mm |
Sinotruk Howo TX 6x4 Dump Truck Key Features
Powerful Performance: Equipped with a high-torque 400-440hp diesel engine, the Sinotruk HOWO TX 6×4 Dump Truck ensures smooth acceleration and consistent power even under full loads.
6×4 Drivetrain: The three-axle configuration enhances traction and stability, making the HOWO TX 6×4 Dump Truck ideal for uneven terrains and challenging job sites.
Durable Dump Body: Constructed with reinforced steel, the front-tipping design allows quick and efficient unloading of aggregates, sand, or debris, minimizing downtime.
