Brand name: Sinotruk Howo
Vehicle use: Sinotruk Howo Tipper Truck
Model number: ZZ3317V386GB1
Engine: WD615.47
Dimension(mm): 10800*2550*3500
Drive type: 8X4
Place of origin: in china

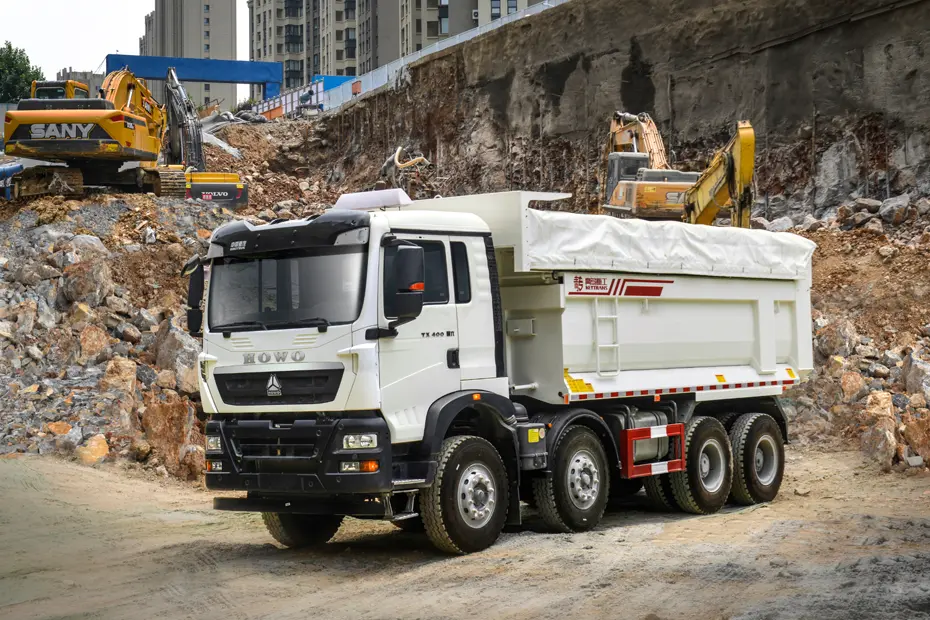

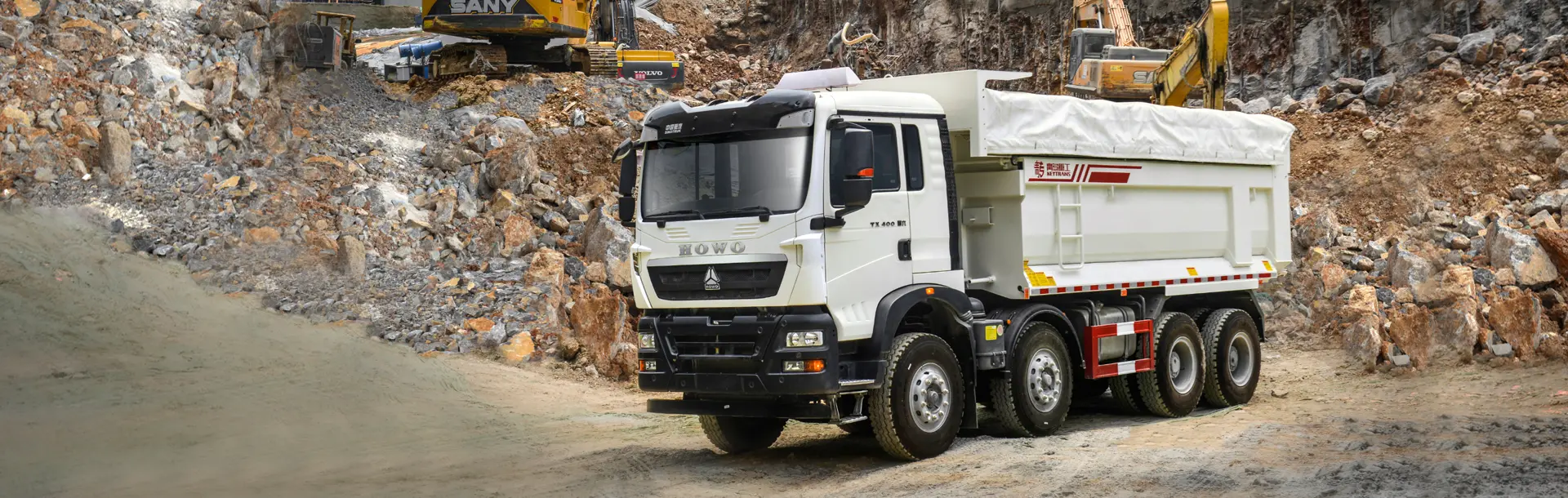

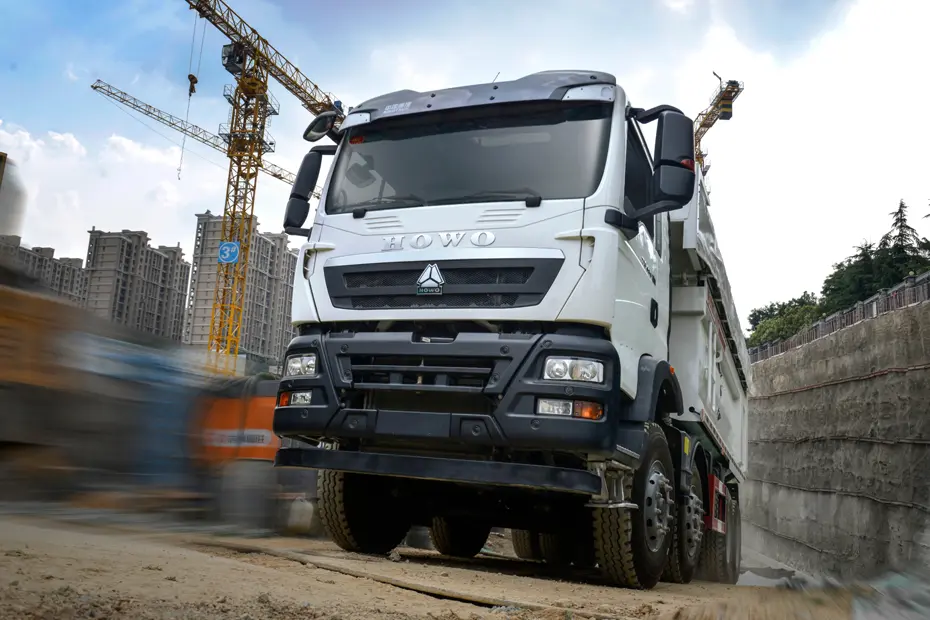

SINOTRUK HOWO TX 8X4 DUMP TRUCK
Sinotruk HOWO TX 8×4 Dump Truck – Power Meets Precision for Heavy-Duty Hauling
The Sinotruk HOWO TX 8×4 Dump Truck is engineered for uncompromising performance in construction, mining, and large-scale material transport. Combining raw power with intelligent design, this truck delivers efficiency, durability, and operator comfort for demanding applications.
SINOTRUK HOWO TX 8X4 DUMP TRUCK: where power meets precision
This Sinotruk Howo TX 8×4 Dump Truck is built to maximize productivity while minimizing maintenance costs. Its intelligent drivetrain, reinforced body, and operator-focused design make it a trusted partner for businesses prioritizing efficiency and reliability in heavy-duty hauling.
Invest in the HOWO TX 8×4 Dump Truck – where power meets precision.
Truck Parameters
| SINOTRUK HOWO TX 8X4 DUMP TRUCK | |
| Production Year | 2025, new truck. |
| Cabin | TX-F cab, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver’s seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer,with 4-point support fully floating suspension + shock absorber. High steel bumper, With inter-cooler fence. |
| Engine | Diesel 4-stroke direct injection diesel engine Engine model: WD615.47, 371HP 6-cylinder in-line with water cooling, turbo-charging and intercooling Displacement: 9.726 L |
| Transmission | HW19710, 10F & 2R, with HW50 PTO Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
| Steering | ZF power steering, model ZF8098, hydraulic steering with power assistance |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
| Front Axle | VGD95, 9500 KGS Steering with double T-cross section beam |
| Rear Axle | MCP16ZG, 2*16000KG Pressed axle housing, central Single reduction with hub reduction and with differential locks between wheels and axles. |
| Chassis | Front suspension:11 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:11leaf semi-elliptic springs, bogie spring and stabilizer |
| Brake | Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake |
| Electrics | Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
| Fuel Tank | 300L |
| Tire | 12.00R20, Radial (steel wire) Tires. 12+1 Pics |
| Cargo Body | 7300X2300X1700mm, 28.54Cubic Meters Thickness: Floor 8 mm, Side 6 mm Front Lifting System |
| Overall Dimension |
11800*2550*3500 mm |
|
Color |
Optional |
Sinotruk Howo TX 8x4 Dump Truck Key Features
High-Torque Engine: The Sinotruk HOWO TX 8×4 Dump Truck is equipped with a robust 480hp diesel engine (or scalable options), ensuring smooth acceleration and consistent power under heavy loads.
8×4 Drivetrain: The four-axle configuration enhances traction and stability, making the HOWO TX 8×4 Dump Truck ideal for rough terrains and steep inclines.
Durable Dump Body: Reinforced steel construction with front-tipping design allows rapid unloading of aggregates, sand, or debris, minimizing downtime.
