Brand Name: Sinotruk
Curb weight(kg): 23000
Loading Weight(kg): 50000
Price: USD9,000-15,800
Specification: 6X4
Place of origin: in china

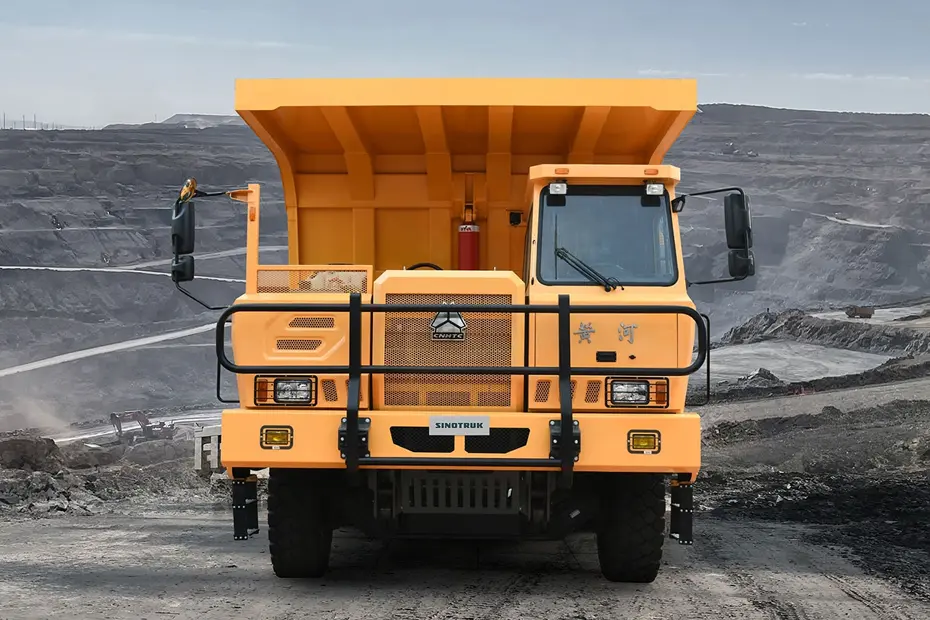

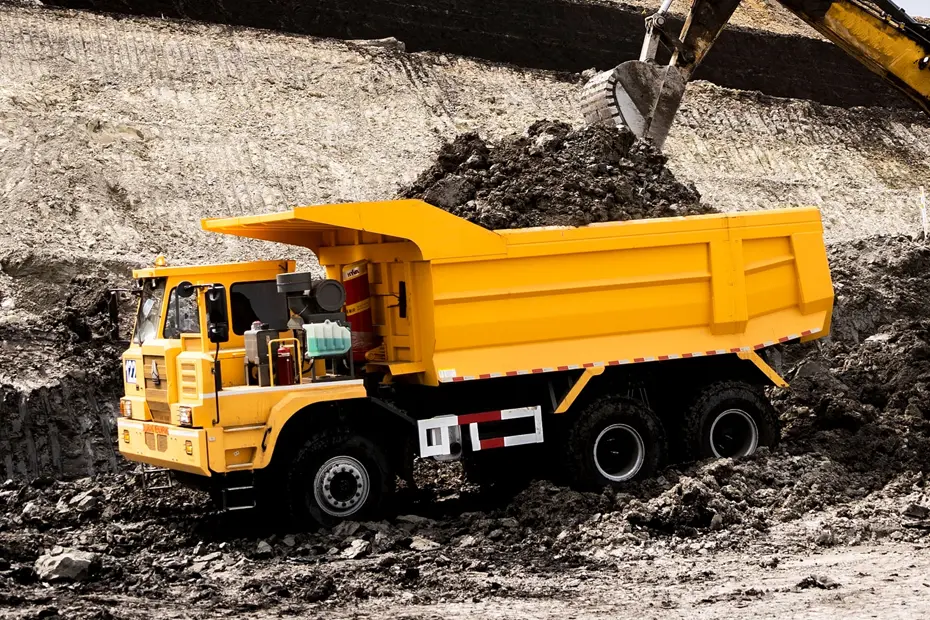

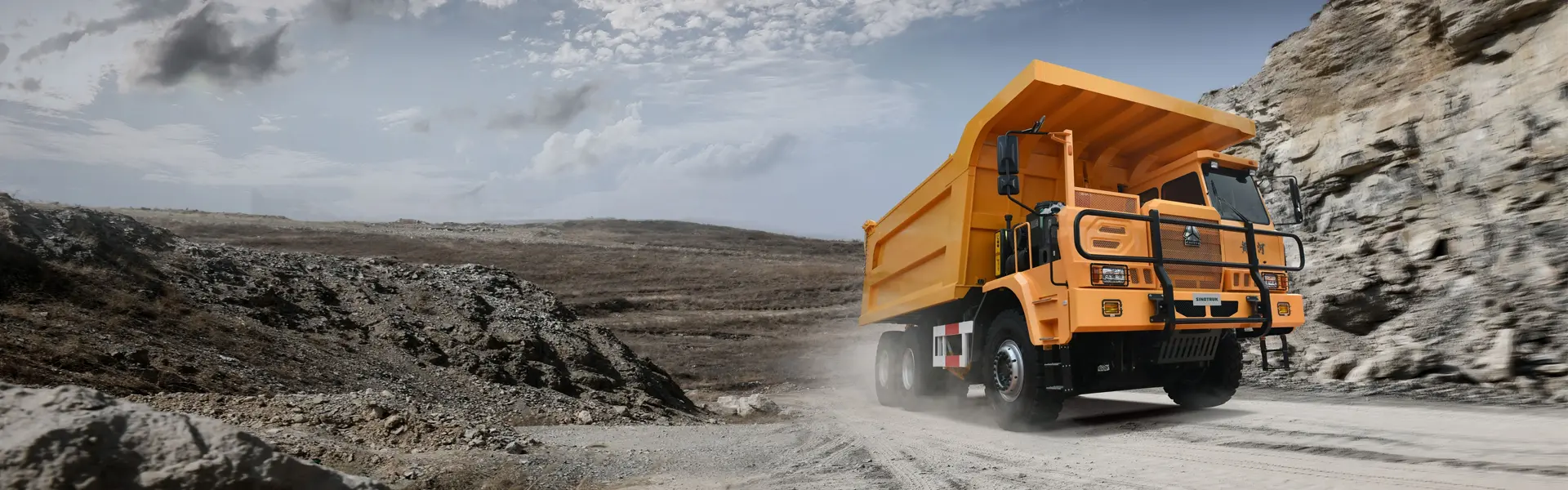

Sinotruk Mine Purpose Dump Truck Lifting Heavy Loads with Ease
The Sinotruk Mine Purpose Dump Truck represents heavy-duty engineering optimized for rigorous mining operations. Designed with reinforced components and high-capacity hauling capabilities, this specialized mine purpose dump truck delivers uncompromising performance in extracting and transporting bulk materials.
Sinotruk Mine Purpose Dump Truck Key Features
High-strength chassis supporting 40-50ton payloads in mining environments.Diesel-powered engine generating 351-450hp for reliable torque on steep inclines.Enhanced durability with heavy-duty axles and reinforced suspension systems.Front-lifting dump mechanism enabling efficient material discharge.
Sinotruk Mine Purpose Dump Truck Parameter
| Truck Name | Sinotruk Mine Purpose Dump Truck |
| Driving Type | 6X4 |
| Cabin | HW7D cab, without sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver’s seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorbe |
| Engine | Make: SINOTRUK |
| Diesel 4-stroke direct injection diesel engine | |
| Engine model: WD615.47T2, 371 HP ;D12.42T2,420; | |
| Emission ：Euro 2 | |
| 6-cylinder in-line with water cooling, turbo-charging and intercooling | |
| Displacement: 9.726 L | |
| Transmission | HW21712, 12F & 2R, with PTO |
| Steering | ZF power steering, modol ZF8118, hydraulic steering with power assitance |
| Front Axle | HF12,1×12000 KGS |
| Steering with doubleT-cross section beam | |
| Rear Axle | AC26, 2×26000 KGS |
| Pressed axle housing, central single reduction with hub reduction,with differential locks between wheels and axles. | |
| Ratio:10.47,8.51 | |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
| Chassis | Front suspension: 1500mm,Half the elliptical leaf spring with shock absorber cavitation |
| Rear suspension: 1000mm, The overall balance shaft balance suspension, unilateral inclined outfit 4 riding bolt | |
| Brake | Service brake: dual circuit compressed air brake |
| Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels | |
| Auxiliary brake: engine exhaust brake | |
| Electrics | Operating voltage: 24 V, negative grounded |
| Starter: 24 V, 5.4 Kw | |
| Alternator: 3-phase, 28 V, 1500 W | |
| Batteries: 2 x 12 V, 165 Ah | |
| Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light | |
| Tyres | 14.00-25, radial tyres with one spare tyre |
| Fuel Tank | 500L |
| Cargo Body | Length:5.8M,6.3M,6.8M,7.6M; |
| Width:3.1M;Height:1.2-2M | |
| Overall Dimension | 9045* 3200 * 3770 mm |
Sinotruk Mine Purpose Dump Truck Applications
Large-scale mineral extraction from open-pit mines;
Overburden removal and site development;
Hauling extracted materials to processing facilities
Choose the Sinotruk Mine Purpose Dump Truck for maximum productivity in the most demanding mining conditions, combining brute strength with operational efficiency
