Truck: Sinotruk Off-road Pickup
Model Number: ZZ1037H322PF5B
Front Track/Rear Track:1680mm/1608mm
Vehicle Length:5.4 meters
Vehicle Width:1.965 meters
Vehicle Height:1.898 meters
Gross Vehicle Weight:3.14 ton
Vehicle Weight:2.32 ton
Sinotruk Off-road Pickup With Power and Precision
The Sinotruk R101 emerges as a dynamic off-road pickup truck, engineered to balance rugged performance with modern comfort. Designed for adventure seekers and commercial users alike, it combines robust powertrain technology, intelligent features, and durable construction to conquer diverse terrains.
Sinotruk Off-road Pickup Performance & Powertrain
Engine: Equipped with a WP2H 2.0T Diesel Engine, delivering 140kW maximum power and 420N·m peak torque—providing ample strength for off-road climbs and heavy hauling.
Transmission: Paired with an 8-speed automatic transmission, ensuring smooth gear shifts and optimal power delivery across varying speeds.
Drivetrain: Available in 4×4 (four-wheel drive) configuration, enhanced with terrain-adaptive capabilities to tackle mud, snow, and rough trails.
NVH Technology: Features Original Deep Sea Submarine NVH Technology, reducing idle rattle noise to ≤41 decibels—quieter than many petrol-engine pickups.
Sinotruk Off-road Pickup Parameters
| SINOTRUK OFF-ROAD PICKUP | |
| Model: | ZZ1037H322PF5B |
| Wheelbase: | 3230mm |
| Front Track/Rear Track: | 1680mm/1608mm |
| Vehicle Length: | 5.4 meters |
| Vehicle Width: | 1.965 meters |
| Vehicle Height: | 1.898 meters |
| Front Overhang/Rear Overhang: | 0.938/1.232 meters |
| Vehicle Weight: | 2.32 ton |
| Gross Vehicle Weight: | 3.14 ton |
| Rated Payload: | 0.495 ton |
| Approach Angle/Departure Angle: | 30/26Degree(°) |
| Country of Origin: | Shandong Jiangjin |
| Fuel consumption: | 8.7L/100km |
| Maximum Speed: | 165km/h |
| Remarks: | Cruise control, off-road side steps, heated steering wheel |
| Version: | Elite Edition |
| Energy Type: | Gasoline |
| Engine parameters | |
| Engine Model: | weichi WP2HQ190E61 |
| Maximum Horsepower: | 190 Horsepower |
| Maximum Output Power: | 140kW |
| Fuel Type: | diesel fuel |
| Displacement: | 2L |
| Emission Standard: | National VI |
| Maximum Torque: | 420N·m |
| Gearbox parameters | |
| Transmission Model: | 8-speed transmission |
| Number of Gears: | 8-speed |
| Shift Method: | AT automatic |
| Carton parameters | |
| Cargo container type: | Railing type |
| Cargo container length: | 1.52 meters |
| Cargo container width: | 152 meters |
| Cargo container height: | 0.53 meters |
| Cab parameters | |
| Number of seat rows: | Duo queue |
| Passenger capacity: | 5 players |
| Chassis parameters | |
| Power steering system: | Electric Assist |
| Front axle suspension: | Front double wishbone independent suspension |
| Rear axle suspension: | Rear off-road dedicated multi-link solid axle |
| Alloy wheels: | ● |
| wheel brake | |
| Front brake type: | Ventilation disc |
| Rear brake type: | disc |
| Front wheel specifications: | 265/65R18 |
| Rear wheel specifications: | 265/65R18 |
| Security configuration | |
| Driver’s side airbag: | ● |
| Passenger’s side airbag: | ● |
| Keyless start system: | ● |
| Tire pressure monitoring: | ● |
| Control configuration | |
| ABS Anti-lock Braking System: | ● |
| Electronic Brakeforce Distribution (EBD/CBC, etc.); | ● |
| Traction Control (ASR/TCS/TRC, etc.): | ● |
| Vehicle Stability Control (ESP/DSC/VSC, etc.): | ● |
| Internal configuration | |
| Multi-function steering wheel: | ● |
| Seat material: | |
| Air conditioning controls: | Manual |
| Power windows: | ● |
| Power adjustable side mirrors: | ● |
| Rearview camera: | ● |
| Parking radar: | ● |
| Multimedia configuration | |
| GPS/BeiDou dashcam: | |
| Color touchscreen on center console: | ● |
| External audio input (AUX/USB/iPod, etc.): | ● |
| Bluetooth/car phone: | ● |
| Lighting configuration | |
| Daytime running lights: | ● |
| Headlight height adjustable: | ● |
Sinotruk Off-road Pickup Design & Utility

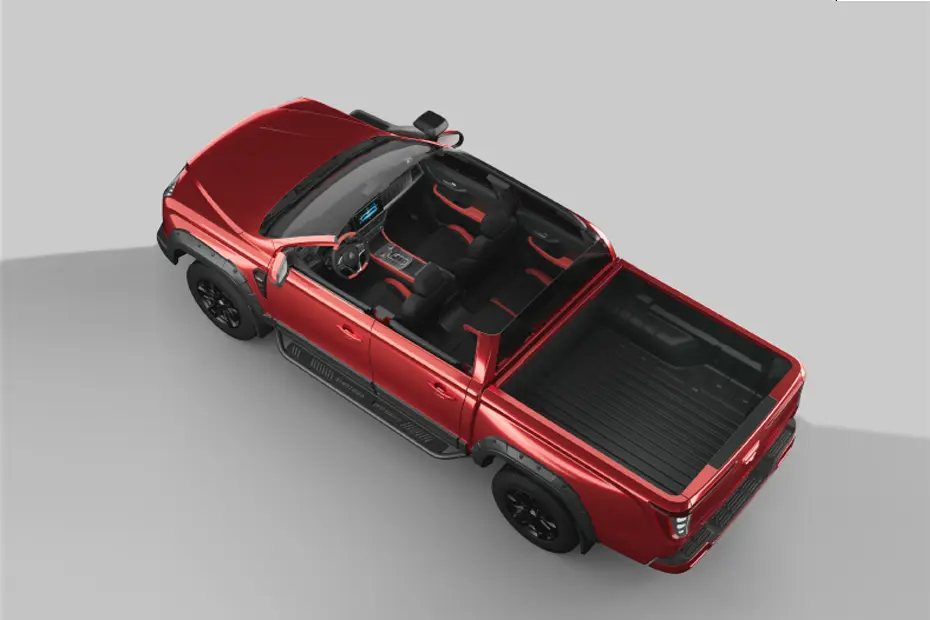

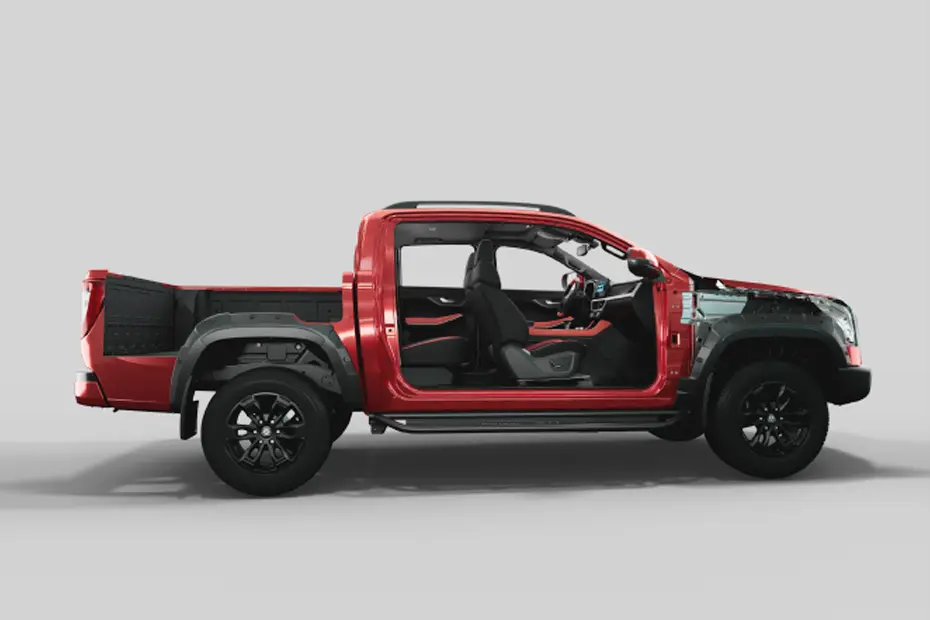

Exterior: Bold and athletic styling with LED lighting, rugged body cladding, and high ground clearance for off-road maneuverability. The double-cabin design offers seating for passengers while maintaining cargo versatility.

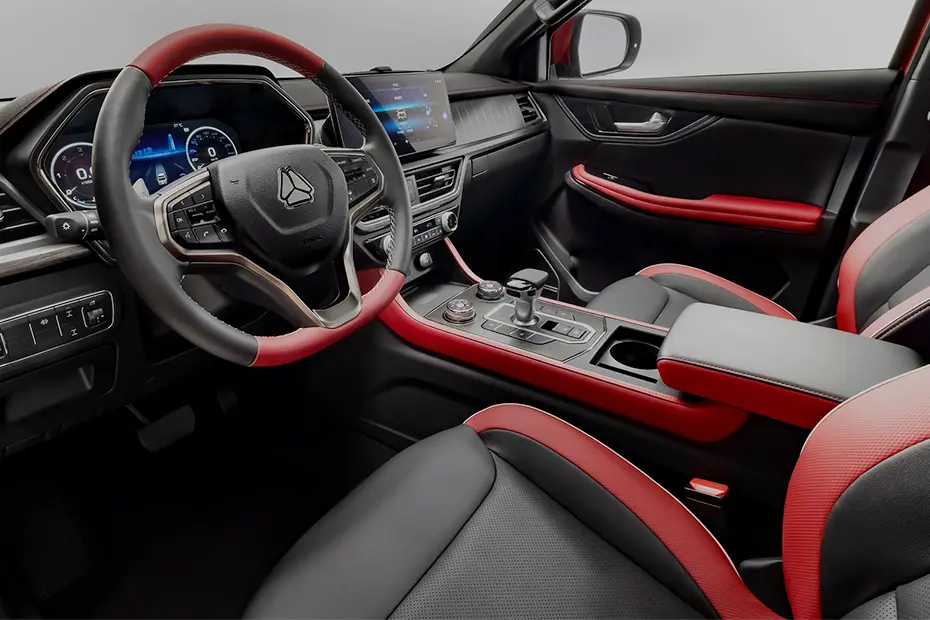

Interior: Comfort-focused cabin with ergonomic seating, air conditioning, and modern infotainment options. Spacious cargo bed (dimensions not specified) supports practical utility for gear and equipment.
Safety: Built with a high-strength steel frame, complemented by essential safety features including ABS (Antilock Braking System) and electronic stability controls, ensuring stability on challenging roads.
Sinotruk Off-road Pickup Key Advantages

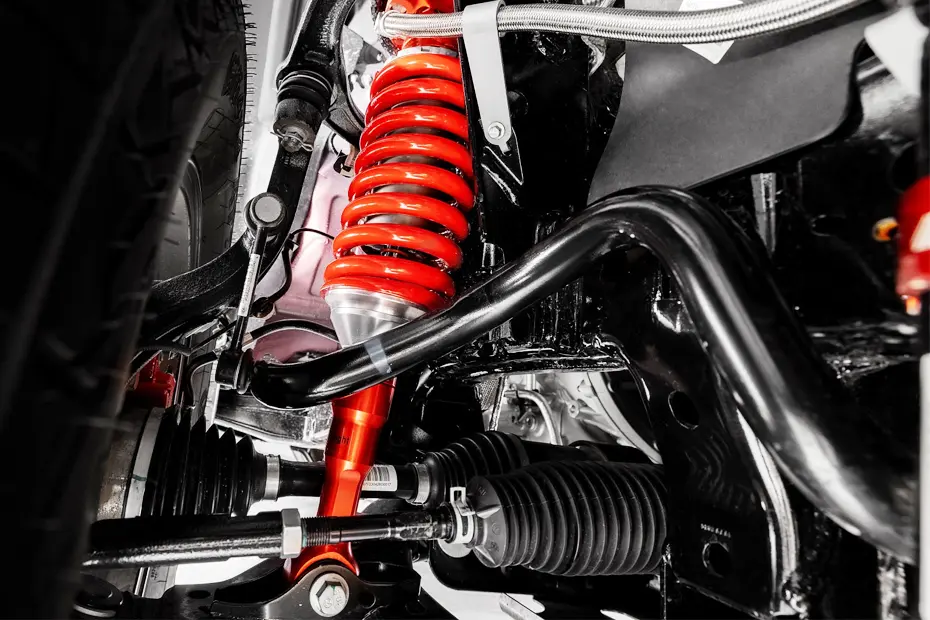

Off-Road Prowess: Engineered to handle rough terrains with ease, supported by robust suspension and durable tires.
Fuel Efficiency: Euro 6 emission-compliant diesel engine balances power with eco-friendliness, ideal for long-distance adventures or commercial use.
Global Support: Backed by overseas call centers and after-sales service, ensuring reliable support for international users.
