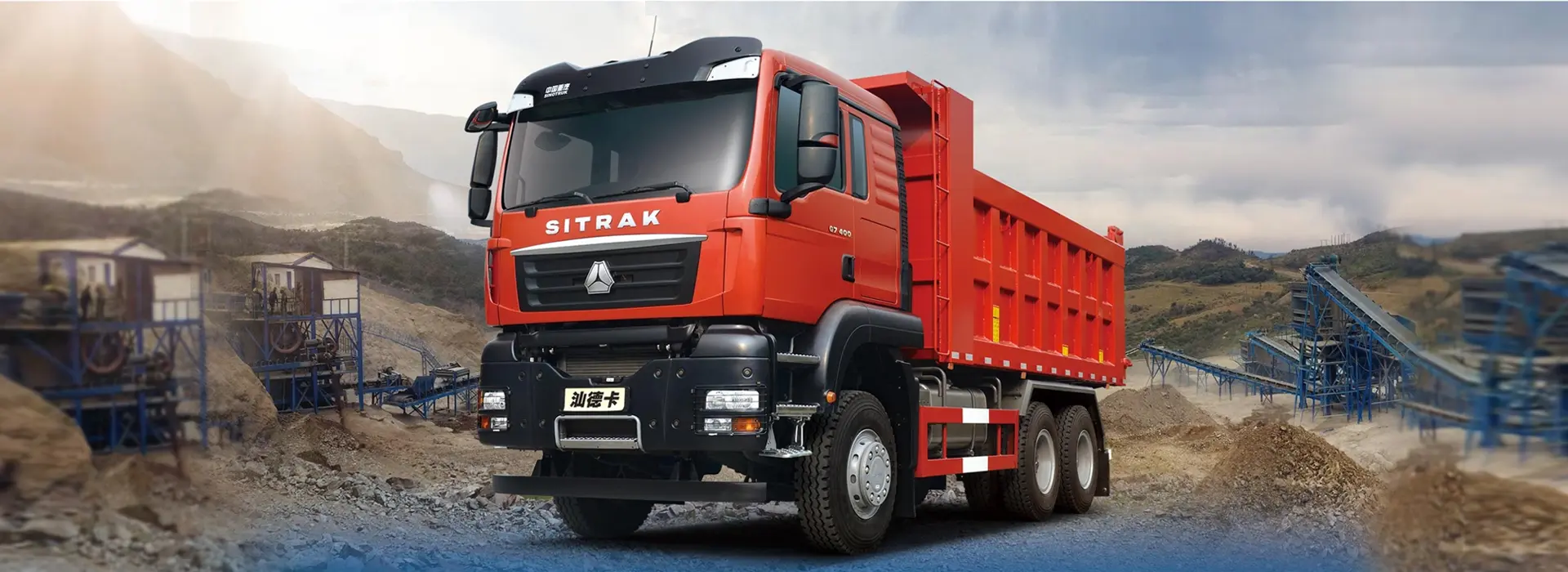

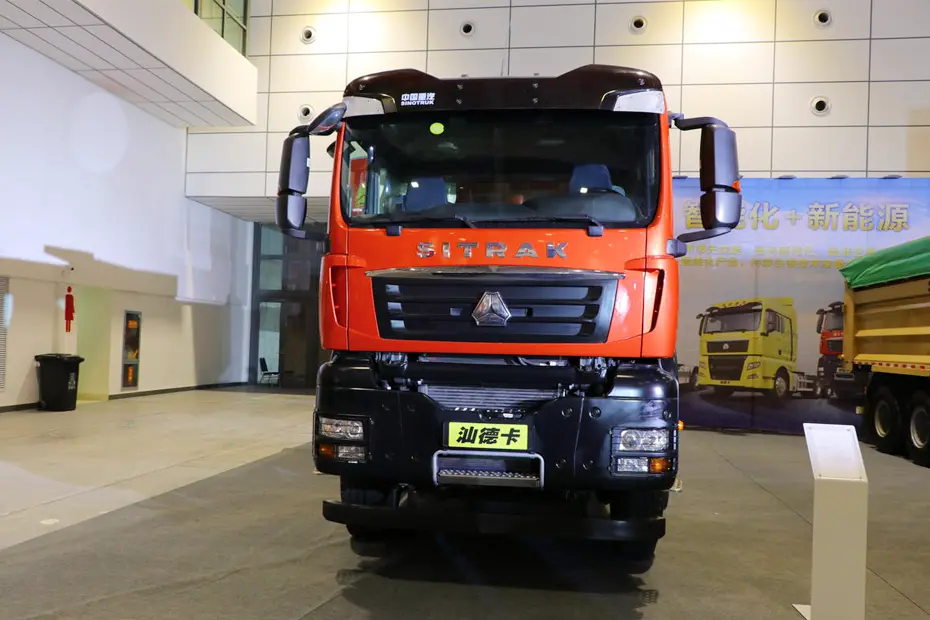

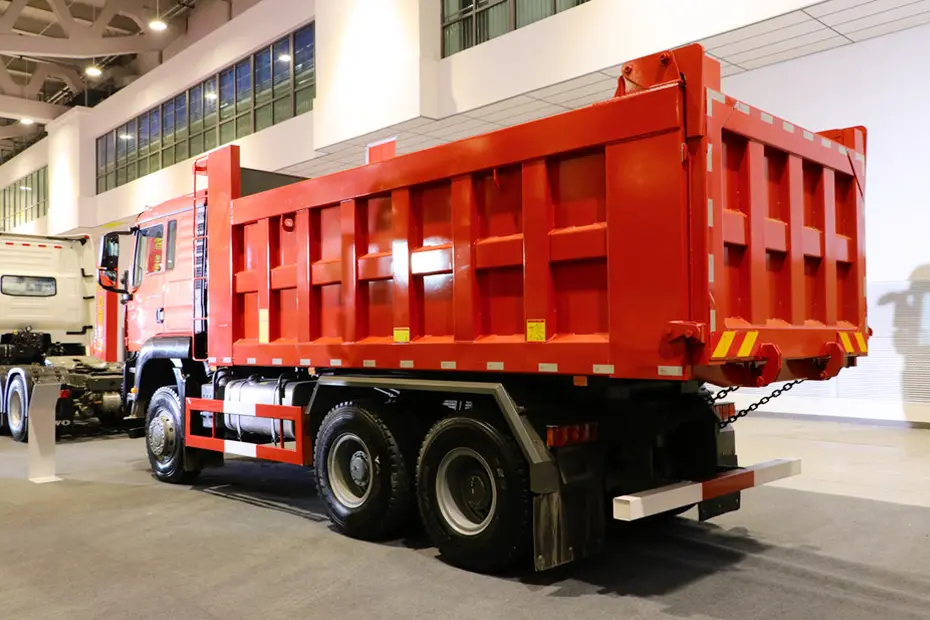

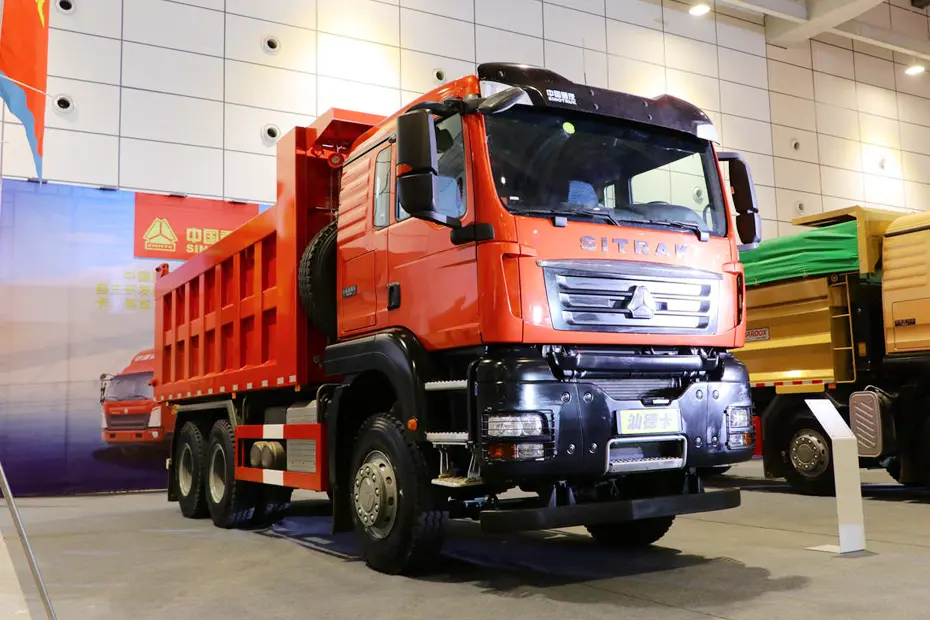

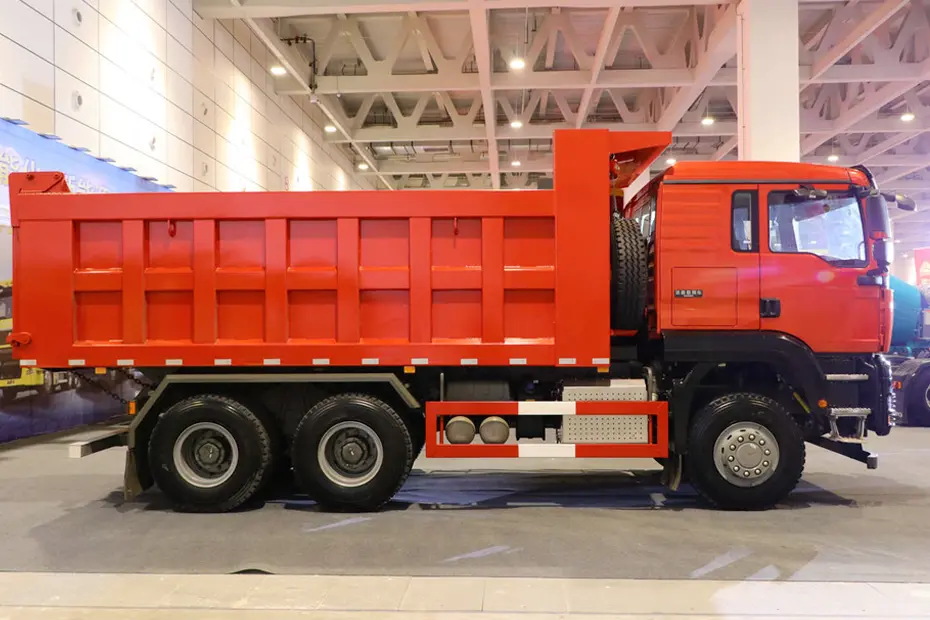

Truck: Sitrak C7H 6X4 Tipper Truck
Vehicle Type: DumpTruck
Horsepower: 400HP
Engine:WP10H400E62
Cargo box length:8.3 meters
Maximum output power:294kW
Drive: 8×4
🔹 Power & Performance
Built for maximum productivity, the truck features a high-strength steel cargo box (U-shaped or rectangular) with a capacity of 20–30 cubic meters, ideal for hauling gravel, sand, or ore. Its reinforced chassis and hydraulic front-tipping mechanism enable quick, efficient unloading, reducing cycle times on job sites. The 800L fuel tank extends operational range, minimizing downtime for refueling.
🔹 Payload & Design
Built for maximum productivity, the truck features a high-strength steel cargo box (U-shaped or rectangular) with a capacity of 20–30 cubic meters, ideal for hauling gravel, sand, or矿石. Its reinforced chassis and hydraulic front-tipping mechanism enable quick, efficient unloading, reducing cycle times on job sites. The 800L fuel tank extends operational range, minimizing downtime for refueling.
Sitrak C7H 6X4 Tipper Truck Parameters
| SITRAK C7H 6X4 TIPPER TRUCK | |||
| Drive type: | 6X4 | Engine: | WP10H400E62 |
| Transmission: | SinotrukHW19712 | Tonnage Class: | Heavy trucks |
| Country of origin: | China Jinan | Market Segment: | construction waste |
| Remarks: | HW50 direct-drive power take-off | Energy Type: | diesel fuel |
| Engine parameters | |||
| Engine Model: | WP10H400E62 | Engine Brand: | Weichai |
| Number of Cylinders: | 6 cylinder | Fuel Type: | diesel fuel |
| Displacement: | 9.5L | Emission Standard: | National VI |
| Maximum Horsepower: | 400HP | Maximum Output Power: | 294kW |
| Maximum Torque: | 1900N·m | Maximum Torque Speed: | 1200-1300rpm |
| Rated Speed: | 1900rpm | Engine Type: | Inline, direct injection, water-cooled, four-stroke, turbocharged and intercooled, electronically controlled high-pressure common rail, Hi SCR |
| Transmission model: | SinotrukHW19712 | Transmission brand: | SINOTRUK |
| Forward gears: | 12 gears | Number of reverse gears: | 2 |
| Cargo box length: | 8.3 meters | Cargo box width: | 2.55 meters |
| Cargo box height: | 3.46 meters | Cargo box type: | Rear tipping self-unloading |
| Unloading method: | Rear tipping self-unloading | Cargo box internal width: | 2.549999952 |
| Cab: | Extended seat | Cab suspension: | Four-point airbag suspension |
| Driver’s Seat Type: | Air-cushioned seat | Fuel Tank Material: | Aluminum alloy |
| Rear Axle Description: | AC16 self-adjusting arm dual rear axle | Suspension type (front/rear): Number of tires: | Front and rear standard multi-leaf springs |
| Tire Specifications: | 12.00R20 | Number of tires: | 10 |
🔹 Comfort & Safety
Designed for driver endurance, the cab includes an air-suspended seat, ergonomic controls, and ample storage. Safety is enhanced with ABS, EBS, and a rearview camera, while the sturdy frame and anti-roll bars ensure stability under full load. Optional features like centralized lubrication systems reduce maintenance needs.
🔹 Technical Specifications
Drive Type: 6X4 (3 axles, 10 wheels)
Emission Standard: Euro 5/Euro 6
Payload Capacity: Up to 30 tons
Tire Size: 12.00R20 (all-steel radial tires)
Suspension: Multi-leaf spring with shock absorbers
