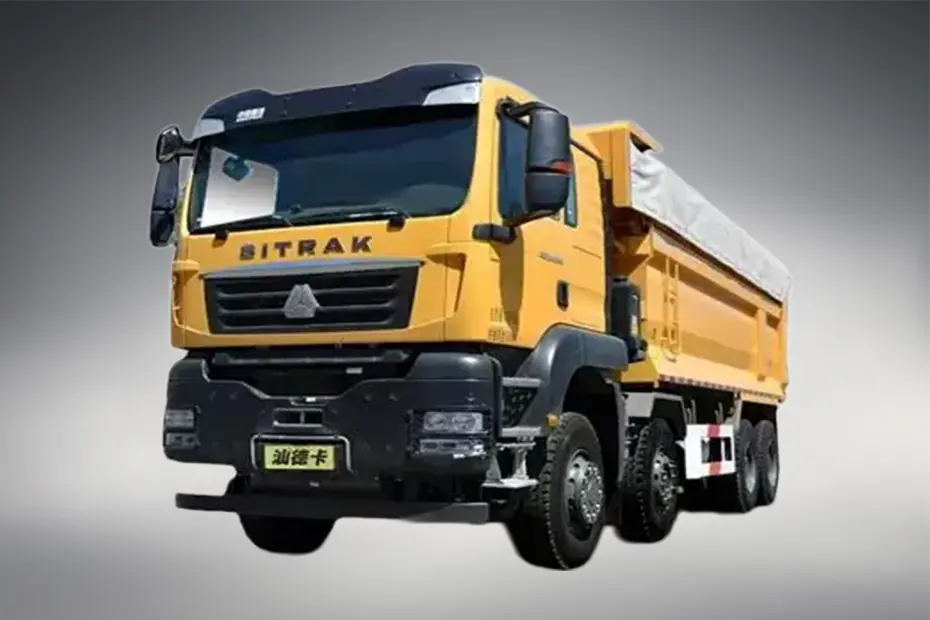

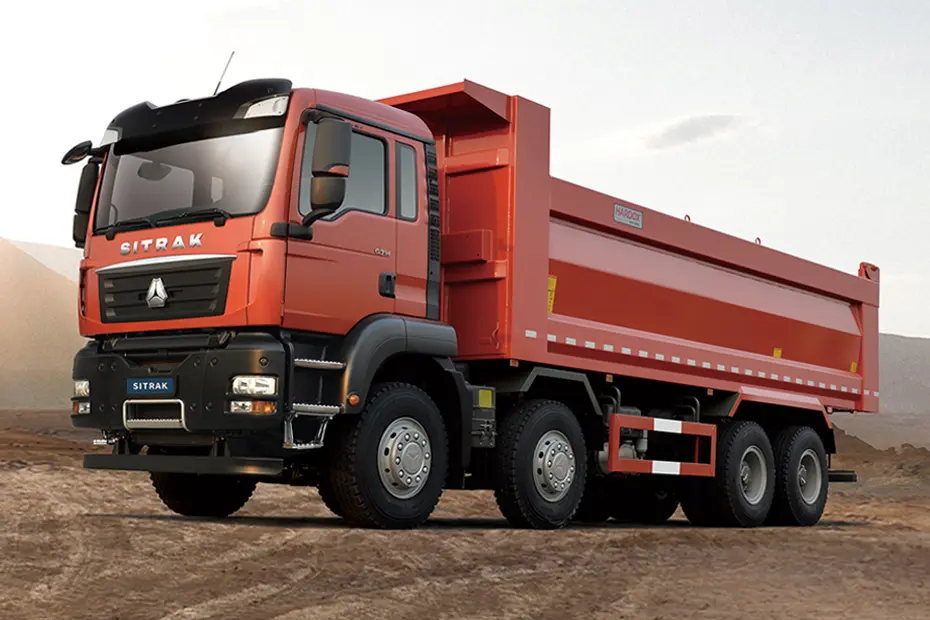

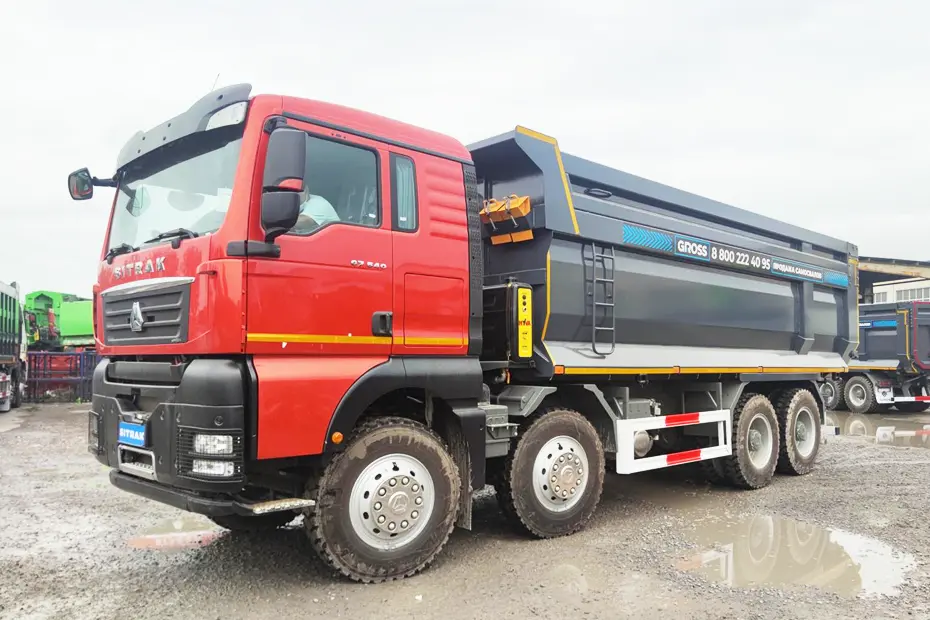

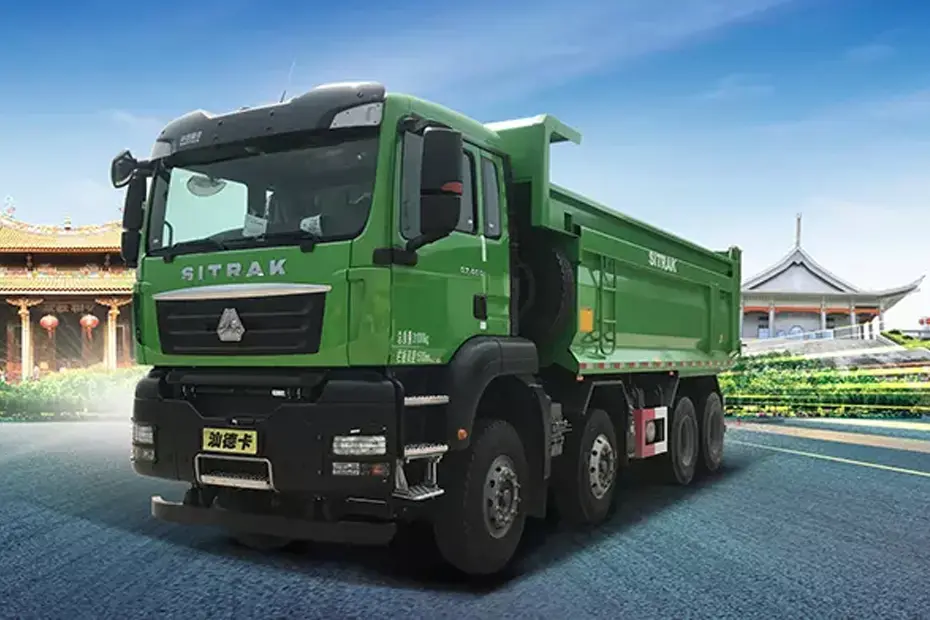

Truck: Sitrak C7H 8X4 Tipper Truck
Vehicle Type: DumpTruck
Horsepower: 440HP
Maximum output power:324kW
Towing Capacity:40 ton
Drive: 8×4
🔹Power & Performance
The Sitrak C7H 8X4 Tipper Truck is built for rugged construction and mining operations, featuring a Weichai WP12/WP13 engine delivering 380–440 horsepower and 1800–2100 Nm of torque. Its robust 8X4 drive system ensures superior traction on rough terrain, while the hydraulic tipping mechanism (front lifting) handles payloads up to 30–40 cubic meters efficiently.
🔹 Design & Efficiency
Designed for maximum productivity, the truck’s U-shaped or rectangular cargo box (with high-strength steel body) minimizes material residue and speeds up unloading. The optimized chassis and reinforced suspension system support heavy loads, while the 1000L fuel tank reduces downtime for refueling during long workdays.
Sitrak C7H 8x4 Tipper Truck Parameters
| SITRAK C7H 8X4 TIPPER TRUCK | |
| Vehicle type | Tipper |
| Drive type | 8×4 |
| Cab | C7H-P ( 525MM single bunk ), C7H-M (749MM single bunk) |
| Engine Emission standerd | Euro III-Euro V |
| Engine Power | 310-440Hp |
| Transmission | 9F,10F,12F,ZF AMT/MT |
| Front axle | 9T+9T |
| Rear axle | 16T+16T |
| Tyre | 12.00R20, 315 / 80R22.5, 13R22.5 etc. |
| Up-body volume | 18-28CBM |
🔹 Safety & Comfort
The cab features air-sprung seats and ergonomic controls to reduce driver fatigue during extended shifts. Safety is enhanced with ABS, EBS, and a rearview camera, while the reinforced frame and anti-roll bars ensure stability under full load. Optional features include a centralized lubrication system for low maintenance.
🔹 Applications & Reliability
Ideal for construction, mining, and infrastructure projects, the C7H 8X4 Tipper combines Sinotruk’s engineering heritage with German MAN technology, ensuring durability in harsh environments. Backed by global after-sales support, it’s a trusted choice for efficient material transport in demanding work sites.
