Truck: SITRAK G7 8X4 Tractor Truck
Model Number: ZZ1316V466HE1B
Vehicle Type: Tractor Truck
Horsepower:460HP
Wheelbase1950+4600+140mm
Engine:Sinotruk MC07H.33-60
Drive:8X4

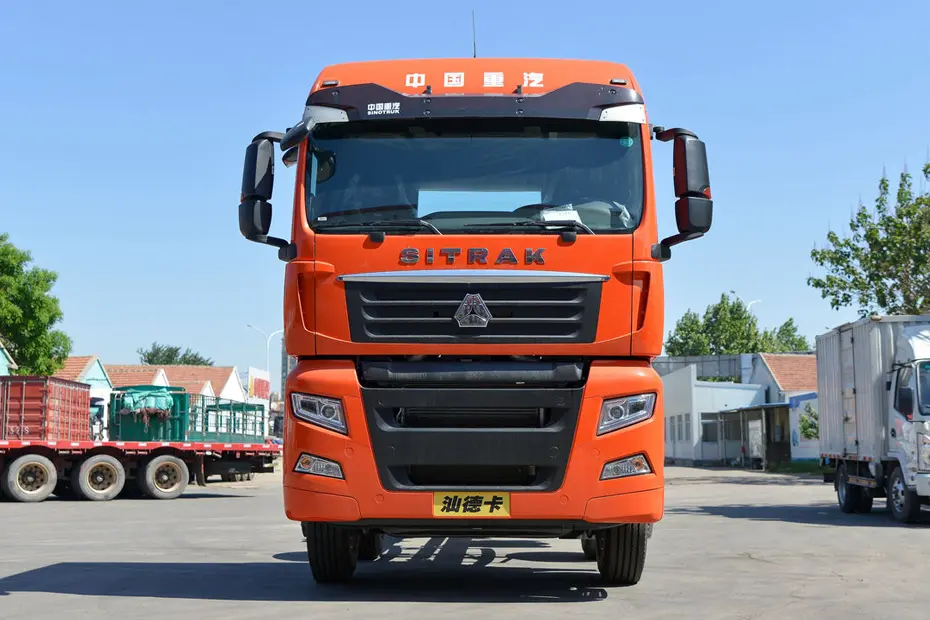

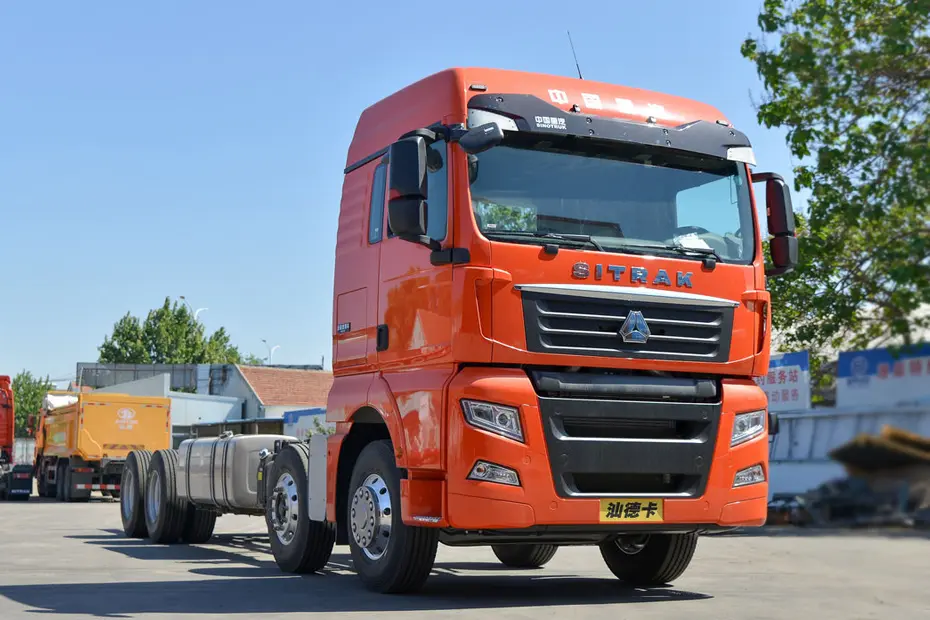

SITRAK G7 8X4 Tractor Truck: The Powerhouse for Demanding Heavy Haulage
The SITRAK G7 8×4 tractor truck is engineered to be the ultimate workhorse for the most demanding freight and logistics challenges. Designed for extreme payloads, challenging terrains, and rigorous duty cycles, it combines robust construction with advanced technology to deliver unmatched reliability, traction, and productivity in heavy-duty transport operations.
Core Concept & Design Philosophy:
Built on the proven SITRAK G7 platform with premium MAN technology, this 8×4 configuration (four axles, all driven) is specifically developed for applications where superior load capacity, enhanced stability, and powerful traction are non-negotiable. It represents the pinnacle of heavy-duty design for specialized logistics, bulk transport, and heavy cargo industries.
Ultra-Robust Chassis & High Payload Capacity:
Reinforced Ladder Frame: Constructed from high-strength steel to withstand immense stress and torsional forces associated with heavy loads.
High GCW (Gross Combination Weight): Engineered to handle exceptionally high gross combination weights, making it ideal for bulk commodities, heavy machinery transport, and container hauling.
Strong Suspension: Features a durable multi-leaf spring or optional air suspension on the rear axles to manage heavy payloads effectively and protect the cargo.
SITRAK G7 8X4 TRACTOR TRUCK PARAMETERS
| SITRAK G7 8X4 TRACTOR TRUCK | |
| Model: | ZZ1316V466HE1B |
| Drive form: | 8X4 |
| Wheelbase: | 1950+4600+140mm |
| Container length level: | 9.5 meters |
| Engine: | Sinotruk MC07H.33-60 |
| Gearbox: | Sinotruk HW25712XSTCL |
| Body length: | 11.99 meters |
| Body width: | 2.55 meters |
| Body height: | 3.78meters |
| Front track: | 2041/2041mm |
| Rear track: | 1850/1850mm |
| Total vehicle weight: | 14.5 tons |
| Total mass: | 15.405 tons |
| Total traction mass: | 31 tons |
| Maximum speed: | 110km/h |
| Tonnage class: | Heavy truck |
| Energy type: | Diesel fuel |
| Engine parameters | |
| Engine model: | MC11.46-50 |
| Engine brand: | Sinotruk |
| Number of cylinders: | 6 cylinder |
| Fuel type: | Diesel fuel |
| Displacement: | 10.518L |
| Maximum horsepower: | 460HP |
| Maximum output power: | 240kW |
| Maximum torque: | 2200N·m |
| Maximum torque speed: | 1000-1400rpm |
| Rated speed: | 1800rpm |
| Gearbox model: | HW25712XSTCL |
| Gearbox brand: | Sinotruk |
| Gear shifting method: | Manual |
| Forward gear: | 12 gears |
| Number of reverse gears: | 2 |
| Passenger capacity: | 3 people |
| Front axle allowable load: | 6750kg |
| Cargo box length: | 9.5meters |
| Cargo box width: | 2.45 meters |
| Cargo box height: | 0.55 meters |
| Speed ratio: | 2.85 |
| Number of tires: | 12 |
| Tire specifications: | 12R22.5 18PR |
